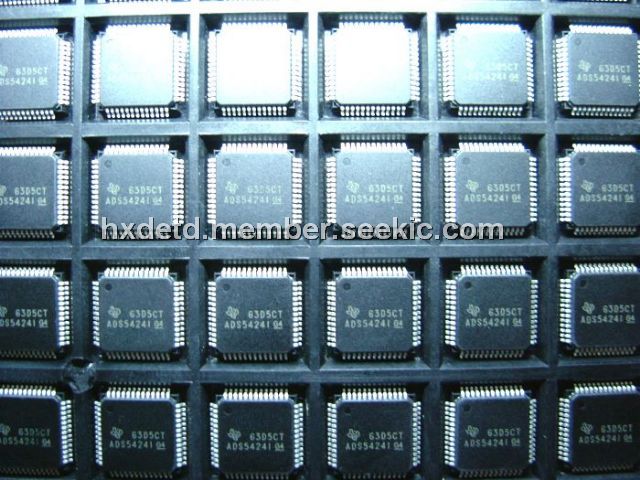

Product Summary
The ADS54241 is a 14 bit 105 MSPS analog-to-digital converter (ADC) that operates from a 5 V supply, while providing 3.3 V CMOS compatible digital outputs. The ADS54241 input buffer isolates the internal switching of the on-chip Track and Hold(T&H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The applications of the ADS54241 are Single and Multichannel Digital Receivers, Base Station Infrastructure, Instrumentation, Video and Imaging.
Parametrics
ADS54241 absolute maximum ratings: (1)Supply voltage:AVDD to GND:6V, DRVDD to GND:5V; (2)Analog input to GND:-0.3 to AVDD + 0.3V; (3)Clock input to GND:-0.3 to AVDD + 0.3V; (4)CLK to CLK:±2.5 V; (5)Digital data output to GND:-0.3 to DRVDD + 0.3V; (6)Operating temperature range:-40℃ to 85℃; (7)Maximum junction temperature:150℃; (8)Storage temperature range:-65℃ to 150℃.
Features
ADS54241 features: (1)4 Bit Resolution; (2)105 MSPS Maximum Sample Rate; (3)SNR = 74 dBc at 105 MSPS and 50-MHz IF; (4)SFDR = 93 dBc at 105 MSPS and 50-MHz IF; (5)2.2 Vpp Differential Input Range; (6)5 V Supply Operation; (7)3.3 V CMOS Compatible Outputs; (8)1.9 W Total Power Dissipation; (9)2s Complement Output Format; (10)On-Chip Input Analog Buffer, Track and Hold,and Reference Circuit; (11)52 Pin HTQFP Package With Exposed Heatsink; (12)Pin Compatible to the AD6644/45; (13)Industrial Temperature Range = -40℃ to 85℃.

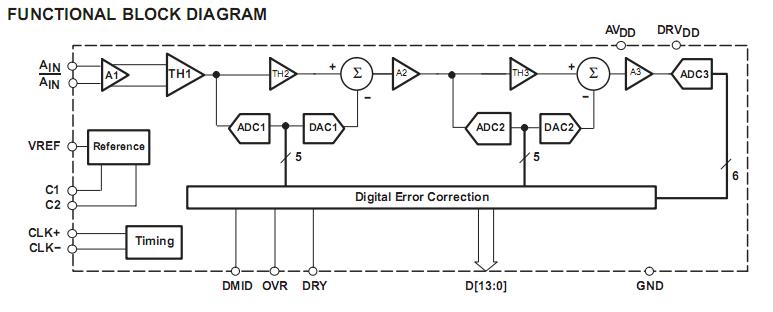

Diagrams
 |
