Product Summary

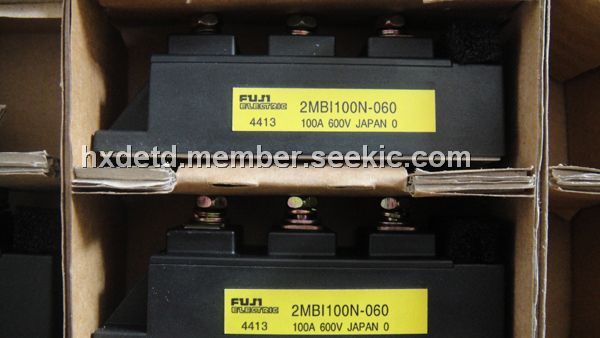

The 2MBI100N-060 is an IGBT MODULE. The applications of the 2MBI100N-060 include High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI100N-060 absolute maximum ratings: (1)Collector-Emitter Voltage: 600 V; (2)Gate -Emitter Voltage: ± 20 V; (3)Collector Current: 200 A; (4)Max. Power Dissipation: 400 W; (5)Operating Temperature: +150 ℃; (6)Storage Temperature: -40 ~ +125 ℃; (7)Isolation Voltage A.C. 1min.: 2500 V.
Features
2MBI100N-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current).

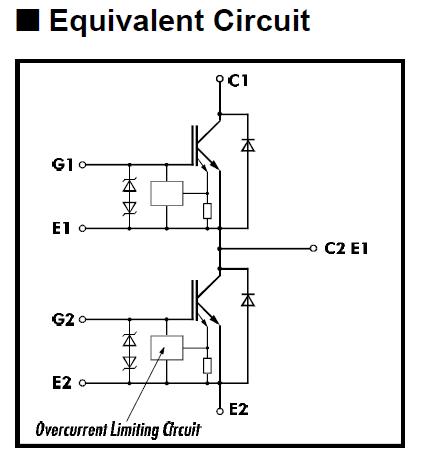

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI100N-060-03 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
2MBI100N-060-03 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI100NB-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI100NC-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI100NE-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI100P-140 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI100PC-140 |
Other |
|
Data Sheet |
Negotiable |
|
||||
