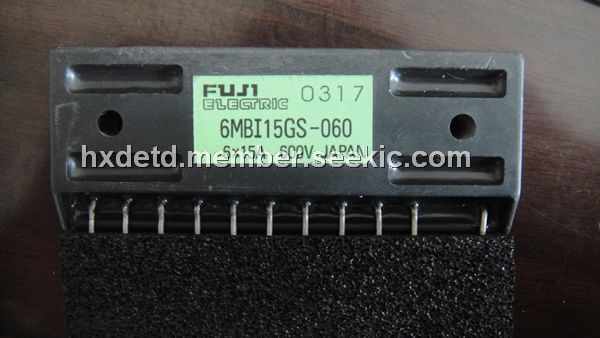

Product Summary

The 6MBI15GS-060 is an IGBT module. It is suitalbe for High Power Switching, A.C. Motor Controls and D.C. Motor Controls.

Parametrics

6MBI15GS-060 absolute maximum ratings: (1)Collector-Emitter Voltage, VCES: 600 V; (2)Gate -Emitter Voltage, VGES: ± 20 V; (3)Continuous, IC: 15A; (4)Collector 1ms, IC PULSE: 30A; (5)Current Continuous, -IC: 15A; (6)1ms, -IC PULSE: 30A; (7)Max. Power Dissipation, PC: 60 W; (8)Operating Temperature, Tj: +150℃; (9)Storage Temperature, Tstg: -40 to +125℃; (10)Isolation Voltage A.C. 1min, Vis: 2000 V; (11)Screw Torque Mounting: 1.7 Nm.

Features

6MBI15GS-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Improved FWD Characteristic; (4)Minimized Internal Stray Inductance.

Diagrams

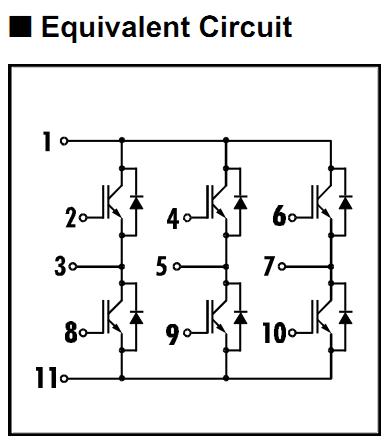

6MBI15GS-060 equivalent circuit
