Product Summary

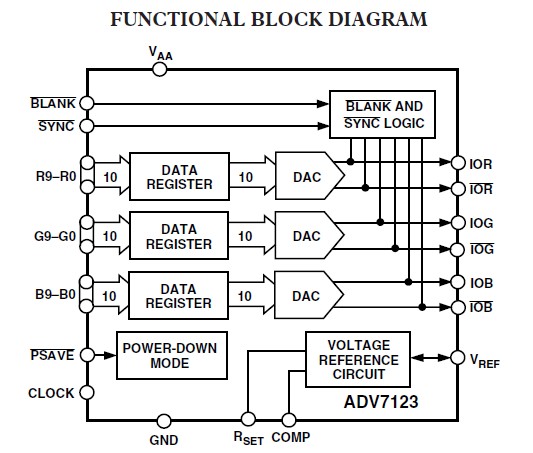

The ADV7123KST-140 is a CMOS, 240 MHz triple 10-bit high speed video DAC. The ADV7123KST-140 is a triple high speed, digital-to-analog converter on a single monolithic chip. The ADV7123KST-140 consists of three high speed, 10-bit, video D/A converters with complementary outputs, a standard TTL input interface, and a high impedance, analog output current source.

Parametrics

ADV7123KST-140 absolute maximum ratings: (1)VAA to GND: 7 V; (2)Voltage on any Digital Pin: GND – 0.5 V to VAA + 0.5 V; (3)Ambient Operating Temperature (TA): –40℃ to +85℃; (4)Storage Temperature (TS): –65℃ to +150℃; (5)Junction Temperature (TJ): 150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Vapor Phase Soldering (1 Minute): 220℃; (8)IOUT to GND2: 0 V to VAA.

Features

ADV7123KST-140 features: (1)RS-343A/RS-170 Compatible Output; (2)Complementary Outputs; (3)DAC Output Current Range 2 mA to 26 mA; (4)TTL Compatible Inputs; (5)Internal Reference (1.23 V); (6)Single-Supply 5 V/3.3 V Operation; (7)48-Lead LQFP Package; (8)Low Power Dissipation (30 mW Min @ 3 V); (9)Low Power Standby Mode (6 mW Typ @ 3 V); (10)Industrial Temperature Range (–40℃ to +85℃).
