Product Summary

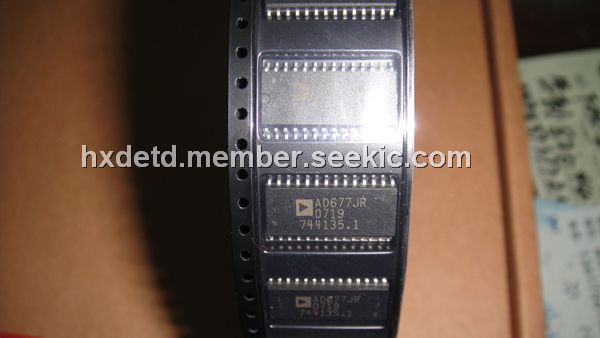

The AD677JR is a 16-bit 100 kSPS sampling ADC. The AD677JR is a multipurpose 16-bit serial output analog-todigital converter which utilizes a switched-capacitor/charge redistribution architecture to achieve a 100 kSPS conversion rate (10 ms total conversion time). Overall performance of the AD677JR is optimized by digitally correcting internal nonlinearities through on-chip autocalibration.

Parametrics

AD677JR absolute maximum ratings: (1)VCC to VEE: –0.3 V to +26.4 V; (2)VDD to DGND: –0.3 V to +7 V; (3)Vcc to AGND: –0.3 V to +18 V; (4)VEE to AGND: –18 V to +0.3 V; (5)AGND to DGND: +0.3 V; (6)Digiul Inputs to DGND: 0 to +5.5 V; (7)Analog Inputs, VREF to AGND: (VCC +0.3 V) to (VEE –0.3 V); (8)Soldering: +300℃, 10 sec; (9)Storage Temperature: –65℃ to +150℃.

Features

AD677JR features: (1)Autocalibrating; (2)On-Chip Sample-Hold Function; (3)Serial Output; (4)16 Bits No Missing Codes; (5)61 LSB INL; (6)–99 dB THD; (7)92 dB S/(N+D); (8)1 MHz Full Power Bandwidth.

Diagrams

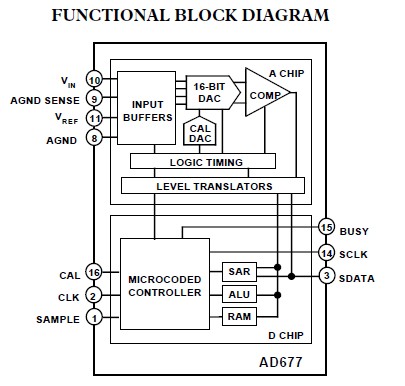

AD677JR functional block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD677JRZ-REEL
AD677JRZ-REEL

IC ADC 16BIT 100KSPS 28-SOIC TR
Data Sheet
0-1000: $20.57
AD677JRZ
AD677JRZ

IC ADC 16BIT SAMPLING 28-SOIC
Data Sheet
0-1: $28.54
1-10: $26.69
10-100: $23.14
100-250: $21.60
250-500: $20.57
AD677JR-REEL
AD677JR-REEL

IC ADC 16BIT SAMPLING 28-SOIC
Data Sheet
0-1000: $23.77
AD677JR
AD677JR

IC ADC 16BIT 100KSPS 28-SOIC
Data Sheet
0-7: $30.30
