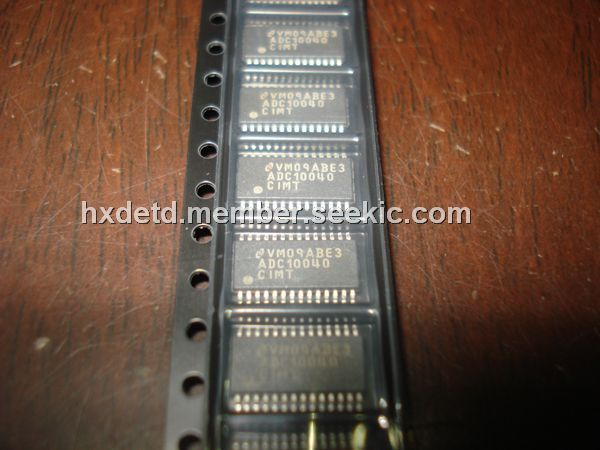

Product Summary

The ADC10040CIMT is a 10-bit, 40 MSPS, 3V, 55.5 mW A/D converter.

Parametrics

ADC10040CIMT absolute maximum ratings: (1)VDDA, VDDIO: 3.9V; (2)Voltage on Any Pin to GND: -0.3V to VDDA or; (3)VDDIO: +0.3V; (4)Input Current on Any Pin: ±25 mA; (5)Package Input Current: ±50 mA; (6)Human Body Model: 2500V; (7)Machine Model: 250V; (8)Soldering Temperature Infrared, 10 sec.: 235℃; (9)Storage Temperature: -65℃ to +150℃.

Features

ADC10040CIMT features: (1)Single +3.0V operation; (2)Selectable 2.0 VP-P, 1.5 VP-P, or 1.0 VP-P full-scale input swing; (3)400 MHz -3 dB input bandwidth; (4)Low power consumption; (5)Standby mode; (6)On-chip reference and sample-and-hold amplifier; (7)Offset binary or two complement data format; (8)Separate adjustable output driver supply to accommodate 2.5V and 3.3V logic families; (9)28-piTSSOP package.

Diagrams

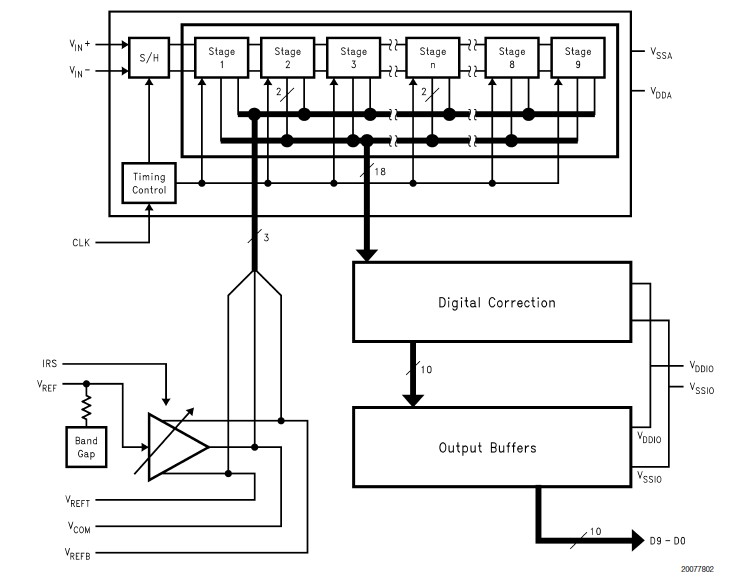

ADC10040CIMT Block Diagram
