Product Summary

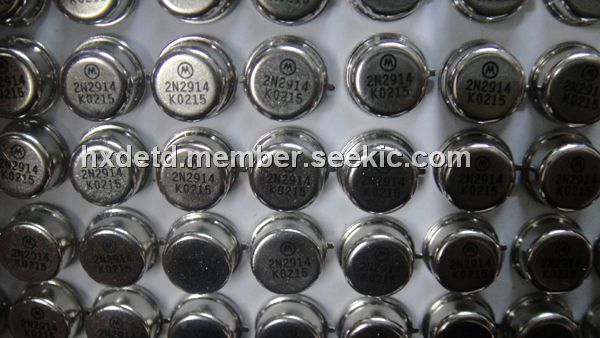

The 2N2914 is a dual NPN planar transistor in TO77 package.
Parametrics
2N2914 absolute maximum ratings: (1)Collector – Base Voltage: 45 V; (2)Collector – Emitter Voltage: 45 V; (3)Emitter – Base Voltage: 6 V; (4)Continuous Collector Current: 30; (5)Total Device Dissipation TAMB = 25℃: 300 mW; (6)Total Device Dissipation TC = 25℃: 750 mW; (7)Storage Temperature Range: -65 to 200 ℃; (8)Lead temperature (Soldering, 10 sec.): 300 ℃.
Features
2N2914 electrical characteristics: (1)Collector – Base Breakdown Voltage: 45 V; (2)Collector – Emitter Breakdown Voltage: 45 V; (3)Emitter – Base Breakdown Voltage: 6 V; (4)Collector Cut-off Current: 10 nA; (5)Collector Cut-off Current: 2 nA; (6)Emitter Cut-off Current: 2 nA; (7)DC Current Gain: 600; (8)Base – Emitter Voltage: 0.70 V; (9)Collector – Emitter Saturation Voltage: 0.35 V.

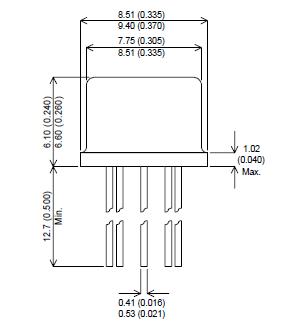

Diagrams
