Product Summary

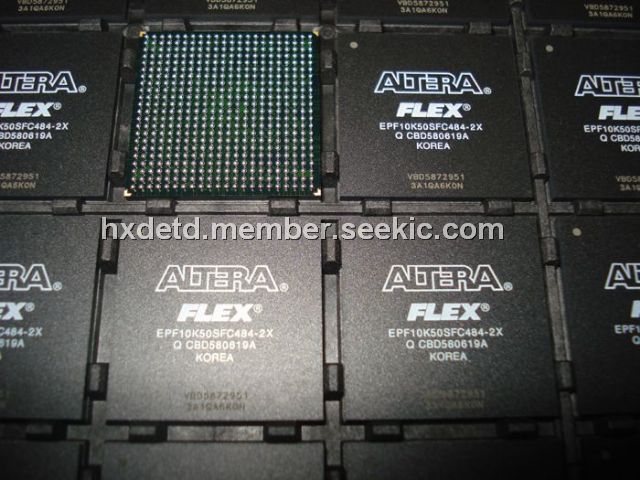

The EPF10K50SFC484-2X is a embedded programmable logic device.
Parametrics
EPF10K50SFC484-2X absolute maximum ratings: (1)VCCINT, Supply voltage With respect to ground: –0.5 to 3.6 V; (2)VCCIO: –0.5 to 4.6 V; (3)VI, DC input voltage –2.0 to 5.75 V; (4)IOUT, DC output current, per pin: –25 to 25 mA; (5)TSTG, Storage temperature No bias: –65 to 150 ℃; (6)TAMB, Ambient temperature Under bias: –65 to 135 ℃; (7)TJ, Junction temperature PQFP, TQFP, BGA, and FineLine BGA; (8)packages, under bias: 135 ℃; (9)Ceramic PGA packages, under bias: 150 ℃.
Features
EPF10K50SFC484-2X features: (1)Embedded programmable logic devices (PLDs), providing system-on-a-programmable-chip (SOPC) integration in a single device; (2)High density; (3)Low power consumption; (4)Bidirectional I/O performance (tSU and tCO) up to 212 MHz.

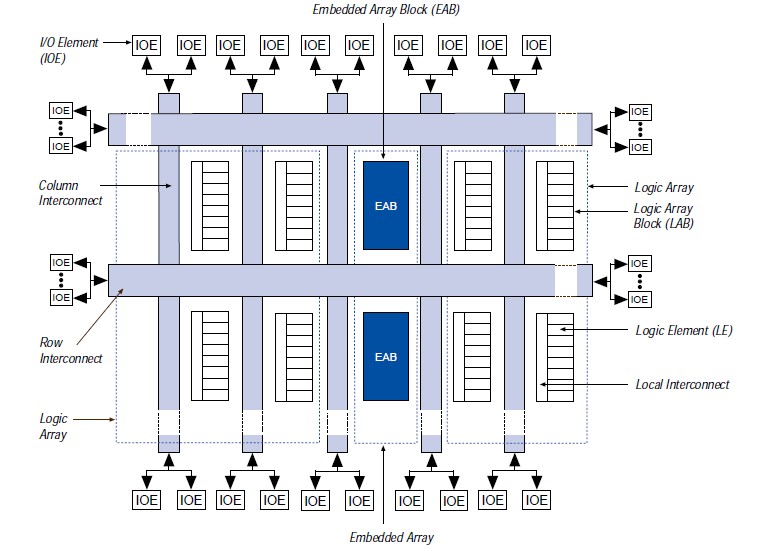

Diagrams
 |
