Product Summary

The DS8921AM is a differential line driver and receiver pair designed specifically for applications meeting the ST506, ST412 and ESDI Disk Drive Standards. In addition, the DS8921AM meets the requirements of the EIA Standard RS-422.

Parametrics

DS8921AM absolute maximum ratings: (1)Supply Voltage: 7V; (2)Driver Input Voltage: -0.5V to +7V; (3)Output Voltage: 5.5V; (4)Receiver Output Sink Current: 50 mA; (5)Receiver Input Voltage: ±10V; (6)Differential Input Voltage: ±12V; (7)Maximum Package Power Dissipation @ +25℃. M Package: 730 mW, N Package: 1160 mW; (8)Derate M Package: 9.3 mW/℃ above+25℃; (9)Derate N Package: 5.8 mW/℃ above+25℃.

Features

DS8921AM features: (1)12 ns typical propagatiodelay; (2)Output skew - 0.5 ns typical; (3)Meet the requirements of EIA Standard RS-422; (4)Complementary Driver Outputs; (5)High differential or common-mode input voltage ranges of ±7V; (6)±0.2V receiver sensitivity over the input voltage range; (7)Receiver input hysteresis-70 mV typical; (8)DS8921AT industrial temperature operation: (-40 to +85℃).

Diagrams

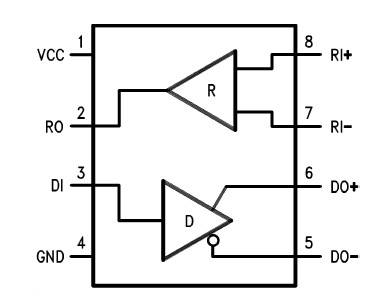

DS8921AM Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

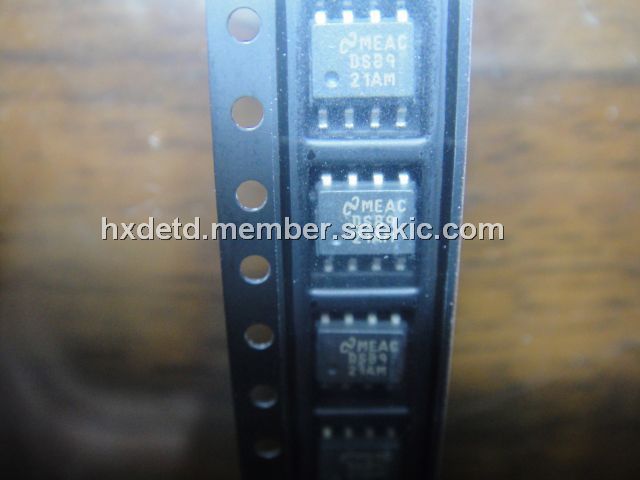

DS8921AM
DS8921AM
National Semiconductor (TI)
Bus Receivers
Data Sheet
0-760: $0.44
760-1045: $0.41
1045-2565: $0.39
2565-5035: $0.37
DS8921AM/NOPB
DS8921AM/NOPB
National Semiconductor (TI)
Bus Receivers DIFF LINE DRVRS AND RECEIVER PAIR
Data Sheet
0-1: $0.83
1-25: $0.67
25-100: $0.59
100-250: $0.51
DS8921AMX/NOPB
DS8921AMX/NOPB
National Semiconductor (TI)
Bus Receivers
Data Sheet
0-1: $1.03
1-25: $0.82
25-100: $0.72
100-250: $0.63
DS8921AMX
DS8921AMX
National Semiconductor (TI)
Bus Receivers
Data Sheet
0-2500: $0.41
2500-5000: $0.39
5000-10000: $0.37
