Product Summary

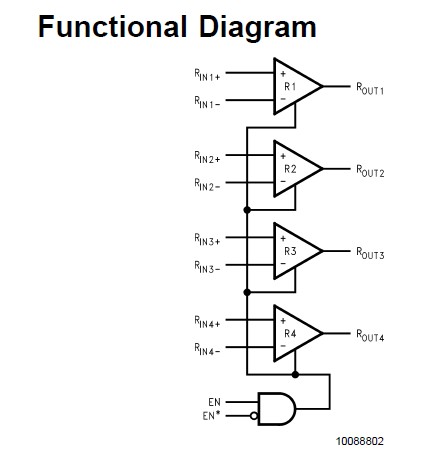

The DS90LV048ATMTC is a 3V LVDS quad CMOS differential line receiver. The DS90LV048ATMTC is a quad CMOS flow-through differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The DS90LV048ATMTC is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.

Parametrics

DS90LV048ATMTC absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)Input Voltage (RIN+, RIN.): -0.3V to 3.9V; (3)Enable Input Voltage (EN, EN*): -0.3V to (VCC + 0.3V); (4)Output Voltage (ROUT): -0.3V to (VCC + 0.3V); (5)Maximum Package Power Dissipation +25℃. M Package: 1025 mW; (6)MTC Package: 866 mW; (7)Derate M Package: 8.2 mW/℃ above +25℃; (8)Derate MTC Package: 6.9 mW/℃ above +25℃; (9)Storage Temperature Range: -65℃ to +150℃.

Features

DS90LV048ATMTC features: (1)>400 Mbps (200 MHz) switching rates; (2)Flow-through pinout simplifies PCB layout; (3)150 ps channel-to-channel skew (typical); (4)100 ps differential skew (typical); (5)2.7 ns maximum propagatiodelay; (6)3.3V power supply design; (7)High impedance LVDS inputs opower down; (8)Low Power desig(40mW 3.3V static); (9)Interoperable with existing 5V LVDS drivers; (10)Accepts small swing (350 mV typical) differential signal levels; (11)Supports open, short and terminated input fail-safe; (12)0V to -100mV threshold region; (13)Conforms to ANSI/TIA/EIA-644 Standard; (14)Available iSOIC and TSSOP package.
