Product Summary
The DS90C363MTD is a 3.3V programmable LVDS transmitter 18-bit flat panel display. The DS90C363MTD transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock of the DS90C363MTD is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data are sampled and transmitted. The DS90C363MTD receiver converts the LVDS data streams back into 21 bits of CMOS/TTL data.
Parametrics
DS90C363MTD absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)CMOS/TTL Input Voltage: -0.3V to (VCC + 0.3V); (3)CMOS/TTL Output Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Receiver Input Voltage: -0.3V to (VCC + 0.3V); (5)LVDS Driver Output Voltage: -0.3V to (VCC + 0.3V); (6)Junction Temperature: +150℃; (7)Storage Temperature: -65℃ to +150℃; (8)Lead Temperature(Soldering, 4 sec): +260℃.
Features
DS90C363MTD features: (1)Single 3.3V supply; (2)Chipset (Tx + Rx) power consumptio< 250 mW (typ); (3)Power-dowmode (< 0.5 mW total); (4)Single pixel per clock XGA (1024x768) ready; (5)Supports VGA, SVGA, XGA and higher addressability.; (6)Up to 170 Megabyte/sec bandwidth; (7)Up to 1.3 Gbps throughput; (8)Narrow bus reduces cable size and cost; (9)290 mV swing LVDS devices for low EMI; (10)PLL requires no external components; (11)Low profile 48-lead TSSOP package; (12)Falling edge data strobe Receiver.

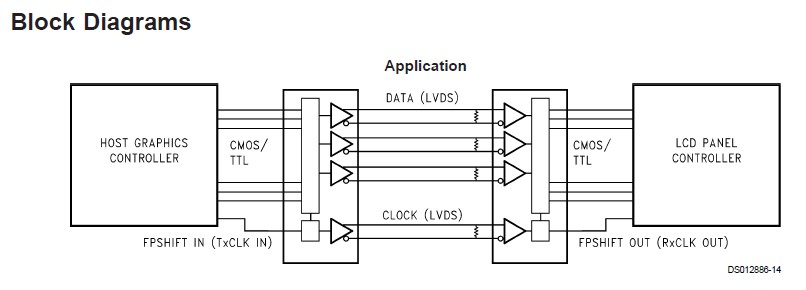

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS90C363MTD |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
||||||||||||
|
DS90C363MTD/NOPB |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
||||||||||||
|
DS90C363MTDX/NOPB |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
||||||||||||
|
DS90C363MTDX |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
||||||||||||
