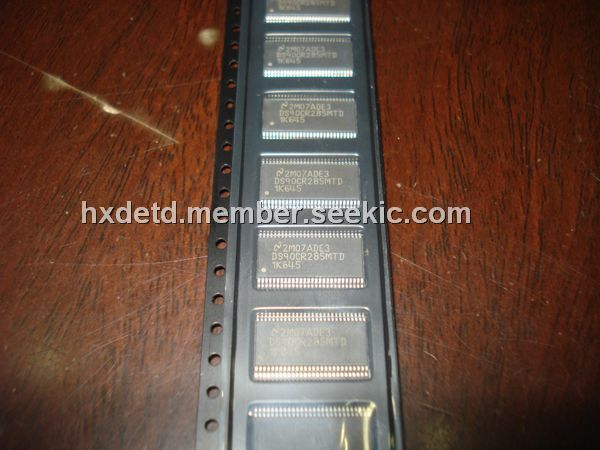

DS90CR285MTD

3.3V, rising edge, data strobe LVDS, 28-bit, 66 MHz, TSSOP-48, 1V, 0.5 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.43~3.59 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $3.43~3.59

PartNumber:: DS90CR285MTD

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-12

From Other Seller

Part Number:DS90CR285MTD
US $3.43 - 3.59
ECA1HHG4R7

US $10.00 - 10.00 / Piece
(0) Remove
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

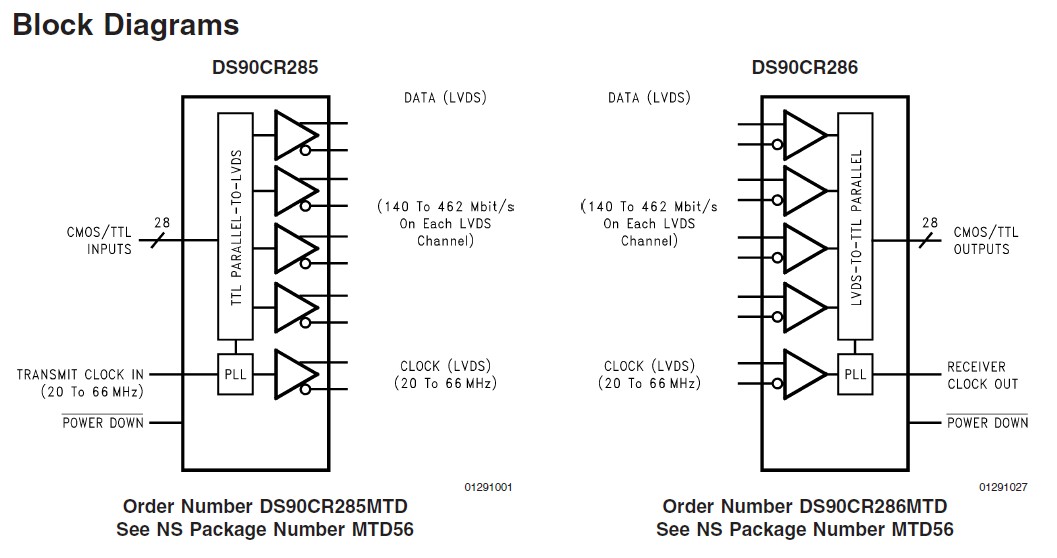

The DS90CR285MTD is a 3.3V rising edge data strobe LVDS 28-Bit channel link-66 MHz. The DS90CR285MTD transmitter converts 28 bits of LVCMOS/LVTTL data into four LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fifth LVDS link. Every cycle of the transmit clock 28 bits of input data are sampled and transmitted. The DS90CR285MTD receiver converts the LVDS data streams back into 28 bits of LVCMOS/ LVTTL data. At a transmit clock frequency of 66 MHz, 28 bits of TTL data are transmitted at a rate of 462 Mbps per LVDS data channel. Using a 66 MHz clock, the data throughput is 1.848 Gbit/s (231 Mbytes/s).

Parametrics

DS90CR285MTD absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)CMOS/TTL Input Voltage: -0.3V to (VCC + 0.3V); (3)CMOS/TTL Output Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Receiver Input Voltage: -0.3V to (VCC + 0.3V); (5)LVDS Driver Output Voltage: -0.3V to (VCC + 0.3V); (6)LVDS Output Short Circuit: Duration Continuous; (7)Junction Temperature: +150℃; (8)Storage Temperature: -65℃ to +150℃; (9)Lead Temperature(Soldering, 4 sec.) +260℃.

Features

DS90CR285MTD features: (1)Single +3.3V supply; (2)Chipset (Tx + Rx) power consumptio<250 mW (typ); (3)Power-dowmode (<0.5 mW total); (4)Up to 231 Megabytes/sec bandwidth; (5)Up to 1.848 Gbps data throughput; (6)Narrow bus reduces cable size; (7)290 mV swing LVDS devices for low EMI; (8)+1V commomode range (around +1.2V); (9)PLL requires no external components; (10)Both devices are offered ia Low profile 56-lead TSSOP package; (11)Rising edge data strobe.
