Product Summary

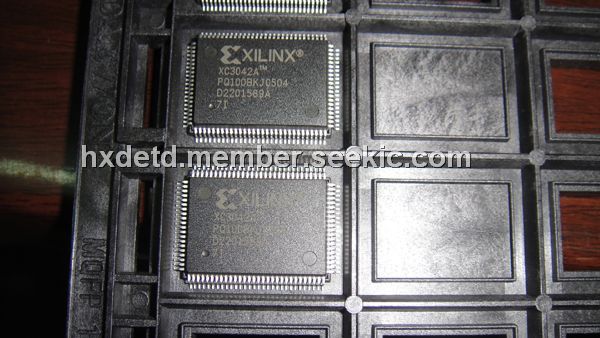

The XC3042APQ100-7I is a high performance Logic Cell Array. It is an enhanced version of the basic XC3000 family, featuring additional interconnect resources and other user-friendly enhancements. The XC3042APQ100-7I provides a group of high-performance, high-density, digital integrated circuits. The regular, extendable, flexible, user-programmable array architecture of the XC3042APQ100-7I is composed of a configuration program store plus three types of configurable elements: a perimeter of I/O Blocks (IOBs), a core array of Configurable Logic Bocks (CLBs) and resources for interconnection.
Parametrics
XC3042APQ100-7I absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to +7.0 V; (2)Input voltage with respect to GND: –0.5 to VCC +0.5 V; (3)Voltage applied to 3-state output: –0.5 to VCC +0.5 V; (4)Storage temperature (ambient): –65 to +150 ℃; (5)Maximum soldering temperature (10 s @ 1/16 in.): +260 ℃; (6)Junction temperature plastic: +125 ℃; (7)Junction temperature ceramic: +150 ℃.
Features
XC3042APQ100-7I features: (1)Replaces TTL, MSI, and other PLD logic; (2)Integrates complete sub-systems into a single package; (3)Avoids the NRE, time delay, and risk of conventional masked gate arrays; (4)High-performance CMOS static memory technology; (5)Guaranteed toggle rates of 70 to 325 MHz, logic delays from 9 to 2.2 ns; (6)System clock speeds over 80 MHz; (7)Low quiescent and active power consumption; (8)Compatible arrays ranging from 1,000 to 7,500 gate complexity; (9)Extensive register, combinatorial, and I/O capabilities; (10)High fan-out signal distribution, low-skew clock nets; (11)Internal 3-state bus capabilities; (12)TTL or CMOS input thresholds; (13)On-chip crystal oscillator amplifier; (14)Unlimited reprogrammability; (15)Easy design iteration; (16)In-system logic changes; (17)Over 20 different packages; (18)Plastic and ceramic surface-mount and pin-gridarray packages; (19)Thin and Very Thin Quad Flat Pack (TQFP and VQFP) options; (20)Ready for volume production; (21)Standard, off-the-shelf product availability; (22)100% factory pre-tested devices; (23)Excellent reliability record.
