Product Summary

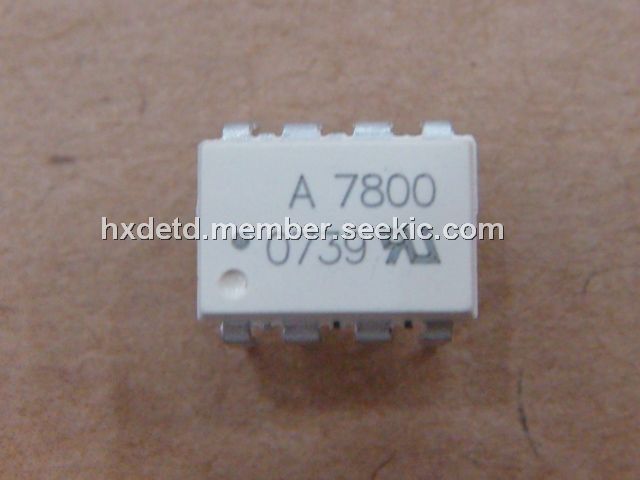

The HCPL-7800 is a high CMR isolation amplifier. The applications of the HCPL-7800 are: Motor Phase and Rail Current Sensing. Inverter Current Sensing, Switched Mode Power Supply Signal Isolation, General Purpose Current Sensing and Monitoring, General Purpose Analog Signal Isolation.
Parametrics
HCPL-7800 absolute maximum ratings: (1)Current Supply: 10.9mA ; (2)Current Output / Channel: 16mA ; (3)Voltage Supply, Single/Dual (±): 4.5 V ~ 5.5 V ; (4)Output Type 3db Bandwidth 100kHz ; (5)Current Input Bias: 500nA ; (6)Operating Temperature: -40℃ ~ 85℃ ; (7)Voltage Input Offset: 300μV.
Features
HCPL-7800 features: (1)15 kV/us Common-Mode Rejection at VCM = 1000 V; (2)Compact, Auto-Insertable Standard 8-pin DIP Package; (3)0.00025 V/V/ degrees C Gain Drift vs. Temperature; (4)0.3 mV Input Offset Voltage; (5)100 kHz Bandwidth; (6)0.004% Nonlinearity; (7)Worldwide Safety Approval; (8)UL 1577 (3750 Vrms/1 min.), CSA and IEC/EN/DIN EN 60747 5-2; (9)Advanced Sigma-Delta (S-D) A/D Converter Technology; (10)Fully Differential Circuit Topology.

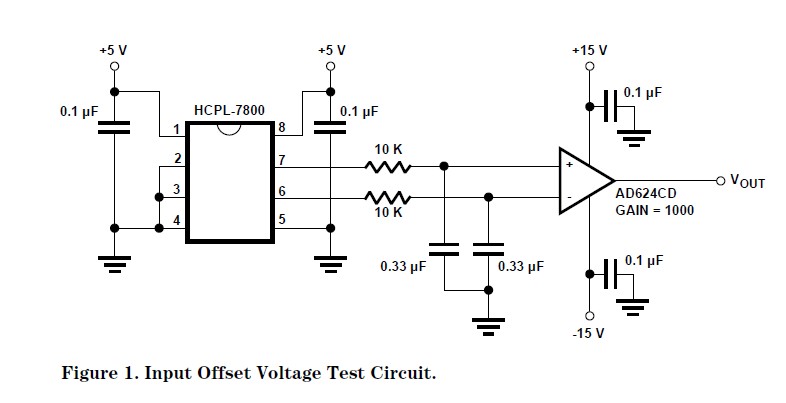

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-7800 |
Avago Technologies |
Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800#300 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800-300E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800-500E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800#500 |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800-000E |
Avago Technologies |
Special Purpose Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A-300E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
|
HCPL-7800A-500E |
Avago Technologies |
Isolation Amplifiers 4.5 - 5.5 SV 8 dB |
Data Sheet |
|
|
||||||||||||
