LM2642MTC

two-phase, synchronous step-down, switching controller, two current mode, 5.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.35~1.40 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.35~1.40

PartNumber:: LM2642MTC

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-13

From Other Seller

Part Number:LM2642MTC
US $1.35 - 1.40
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

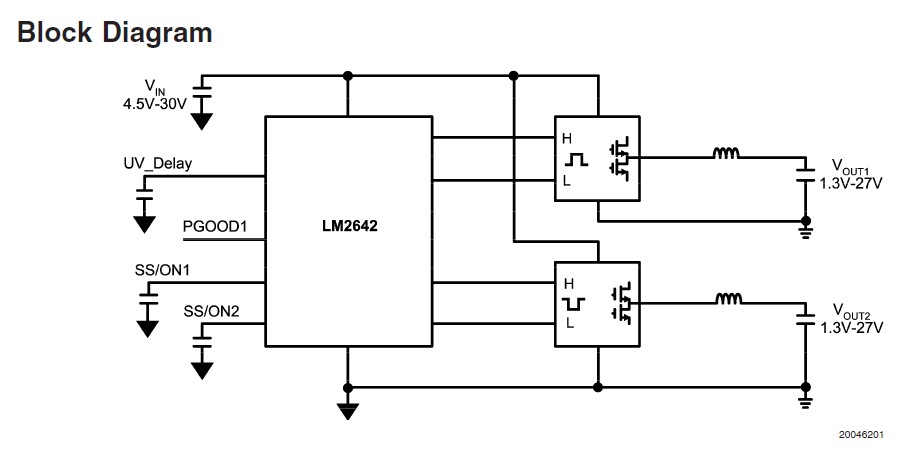

The LM2642MTC is a two-phase synchronous step-down switching controller. The LM2642MTC consists of two current mode synchronous buck regulator controllers with a switching frequency of 300kHz. The two switching regulator controllers operate 180° out of phase. This feature reduces the input ripple RMS current, thereby significantly reducing the required input capacitance. The two switching regulator outputs of the LM2642MTC can also be paralleled to operate as a dual-phase single output regulator.

Parametrics

LM2642MTC absolute maximum ratings: (1)Ambient Storage Temperature Range: -65℃ to +150℃; (2)Vapor Phase: 4 sec, 260℃; (3)ESD Rating: 2kV; (4)VIN (VLIN5 tied to VIN): 4.5V to 5.5V; (5)VIN (VIN and VLIN5 separate): 5.5V to 30V; (6)Junction Temperature: -40℃ to +125℃.

Features

LM2642MTC features: (1)0.04% (typical) line and load regulatioerror; (2)Current mode control with or without a sense resistor; (3)Independent enable/soft-start pins allow simple sequential startup configuration; (4)Configurable for single output parallel operation; (5)Adjustable cycle-by-cycle current limit; (6)Input under-voltage lockout; (7)Output over-voltage latch protection; (8)Output under-voltage protectiowith delay; (9)Thermal shutdown; (10)Self discharge of output capacitors whethe regulator is OFF.
