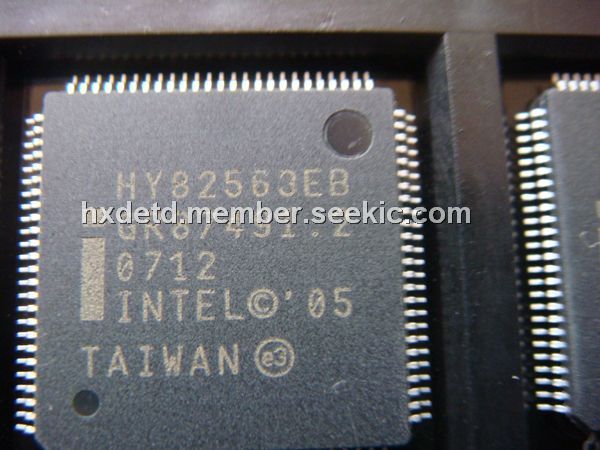

Product Summary

The HY82563EB Gigabit Platform LAN Connect is a dual, compact Physical Layer Transceiver (PHY) component designed for 10/100/1000 Mb/s operation. The HY82563EB uses the Kumeran interface port of the 631xESB/632xESB I/O Controller Hub enabling the routing of long distances up to 28 inches(~711 mm). The HY82563EB Gigabit Platform LAN Connect is the single port implementation.

Parametrics

HY82563EB absolute maximum ratings: (1)VDD DC supply voltage: -0.3 to 4.6 V; (2)VIN Input voltage: -1.0 VDD to + 0.3 V; (3)IIN DC input pin current: -10 to 10 mA; (4)TSTG Storage temperature: -40 to 125℃.

Features

HY82563EB features: (1)IEEE 802.3ab compliant; (2)PICMG 3.1 compliant; (3)Support for cable line lengths greater than 100 m (spec); 123 m physical; (4)Full duplex at 10, 100, or 1000 Mb/s and half duplex at 10 or 100 Mb/s; (5)IEEE 802.3ab Auto-negotiation with Next Page support; (6)Automatic MDI crossover; (7)Advanced Cable Diagnostics.

Diagrams

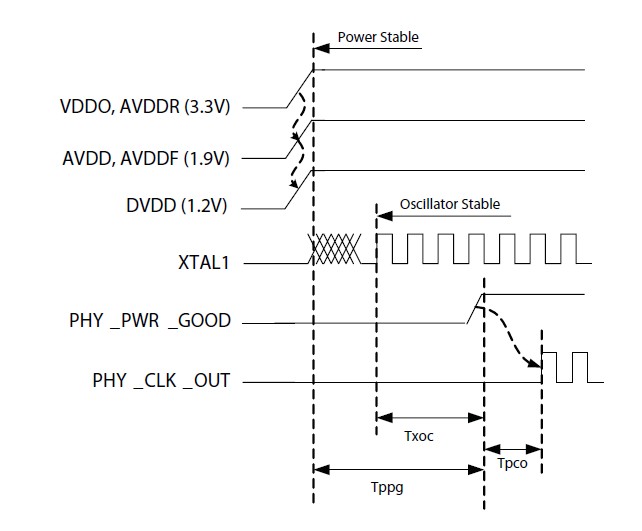

HY82563EB Reset and Initial Clock Timing
