Product Summary

The AQY212GS is a photoMOS relay.

Parametrics

AQY212GS absolute maximum ratings: (1)LED forward current IF: 50 mA; (2)LED reverse voltage VR: 5 V; (3)Peak forward current IFP: 1 A f = 100 Hz, Duty factor = 0.1%; (4)Power dissipation Pin: 75 mW; (5)Peak load current Ipeak: 3 A 100ms (1 shot), VL = DC; (6)Power dissipation Pout: 300 mW; (7)Total power dissipation PT: 350 mW; (8)I/O isolation voltage Viso: 1,500 V AC; (9)Temperature limits. Operating Topr: 40℃ to +85℃; (10)Storage Tstg: 40℃ to +100℃.

Features

AQY212GS features: (1)Greatly increased load current in miniature SOP4-pin package (1.25A high capacity type added); (2)Greatly improved specifications allow you to use this in place of mercury and mechanical relays.

Diagrams

AQY212GS block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AQY212GS
AQY212GS
Panasonic Electric Works
Solid State Relays 500MA 60V 4PIN SPST 1A
Data Sheet
0-1: $3.13
1-25: $2.87
25-50: $2.60
50-100: $2.39
AQY212GSX
AQY212GSX
Panasonic Electric Works
Solid State Relays 60V 550mA 1A SOP Form A Norm-Open
Data Sheet
0-1000: $2.21
1000-3000: $2.14

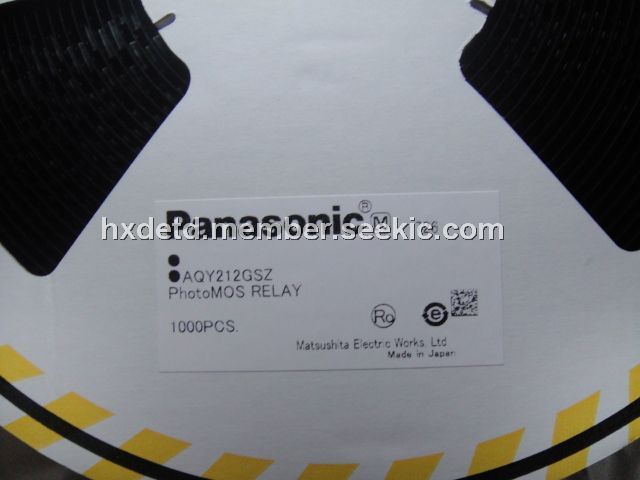

AQY212GSZ
AQY212GSZ
Panasonic Electric Works
Solid State Relays 60V 550mA 1A SOP Form A Norm-Open
Data Sheet
0-1000: $2.18
1000-3000: $2.12
