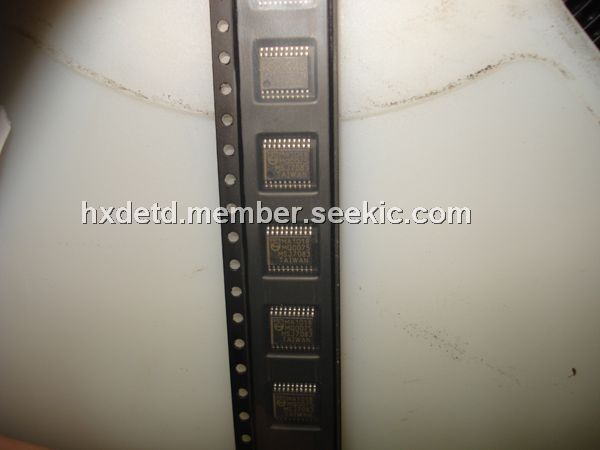

UMA1018M

SSOP, 3 V, low-voltage, dual frequency synthesizer, Dual power-down modes, 5.5 V, 150 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.32~0.34 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.32~0.34

PartNumber:: UMA1018M

Brand:: Philips Electronics India Limited - PHILIPS | Pack: SSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-13

From Other Seller

Part Number:UMA1018M
US $0.32 - 0.34
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The UMA1018M is a low-voltage dual frequency synthesizer for radio telephones. The UMA1018M integrates prescalers, programmable dividers, and phase comparators to implement two phase locked loops. The device is designed to operate from 3 NiCd cells, in pocket phones, with low current and nominal 5 V supplies. The principal synthesizer operates at RF input frequencies up to1.25 GHz the auxiliary synthesizer operates at 300 MHz. The auxiliary loop is intended for the first IF or to transmit offset loop-frequency settings.

Parametrics

UMA1018M absolute maximum ratings: (1)VDD digital supply voltage: -0.3 +5.5 V; (2)VCC analog supply voltage: -0.3 +5.5 V; (3)DVCC-DD difference in voltage between VCC and VDD: -0.3 +5.5 V; (4)Vn voltage at pins 1, 6, 8 to 15, 19 and 20: -0.3 VDD + 0.3 V; (5)V2, 3, 17 voltage at pins 2, 3 and 17: -0.3 VCC + 0.3 V; (6)DVGND difference in voltage between AGND and DGND(these pins should be connected together): -0.3 +0.3 V; (7)Ptot total power dissipation: 150 mW; (8)Tstg storage temperature: -55 +125℃; (9)Tamb operating ambient temperature: -30 +85℃; (10)Tj maximum junction temperature: 95℃.

Features

UMA1018M features: (1)Low current from 3 V supply; (2)Fully programmable RF divider; (3)3-line serial interface bus; (4)Second synthesizer to control first IF or offset loop frequency; (5)Independent fully programmable reference dividers for each loop, driven from external crystal oscillator; (6)Dual phase detector outputs to allow fast frequency switching; (7)Integrated digital-to-analog converter; (8)Dual power-down modes.
