Product Summary
The ADC1175-50CIMT is a 8-bit, 50 MSPS, 125 mW A/D converter. The ADC1175-50CIMT is a low power, 50 MSPS analog-to-digital converter that digitizes signals to 8 bits while consuming just 125 mW (typ). The ADC1175-50CIMT uses a unique architecture that achieves 6.8 Effective Bits at 25 MHz input and 50 MHz clock frequency. Output formatting is straight binary coding. The excellent DC and AC characteristics of the ADC1175-50CIMT, together with its low power consumption and +5V single supply operation, make it ideally suited for many video and imaging applications, including use in portable equipment.
Parametrics
ADC1175-50CIMT absolute maximum ratings: (1)Supply Voltage (AVDD, DVDD): 6.5V; (2)Voltage on Any Input or Output Pin: -0.3V to +6.5V; (3)Reference Voltage (VRT, VRB): AVSS to VDD; (4)CLK, PD Voltage Range: -0.5 to (AVDD +0.5V); (5)Digital Output Voltage (VOH, VOL): VSS to VDD; (6)Input Current at Any Pin: ±25 mA; (7)Package Input Current: ±50 mA; (8)ESD Susceptibility. Human Body Model: 2000V. Machine Model: 250V; (9)Soldering Temperature, Infrared,(10 sec.): 235℃; (10)Storage Temperature: -65℃ to +150℃.
Features
ADC1175-50CIMT features: (1)Internal Track and Hold function; (2)Single +5V operation; (3)Internal reference bias resistors; (4)Industry standard pinout; (5)Power-down mode (<5 mW).

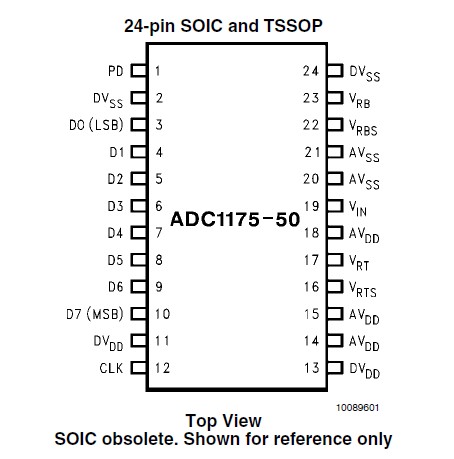

Diagrams
