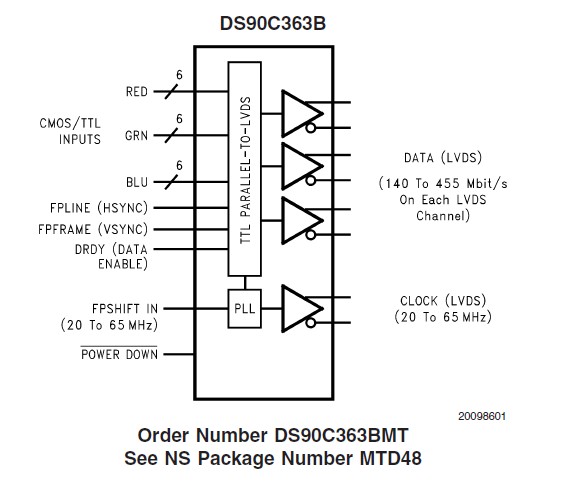

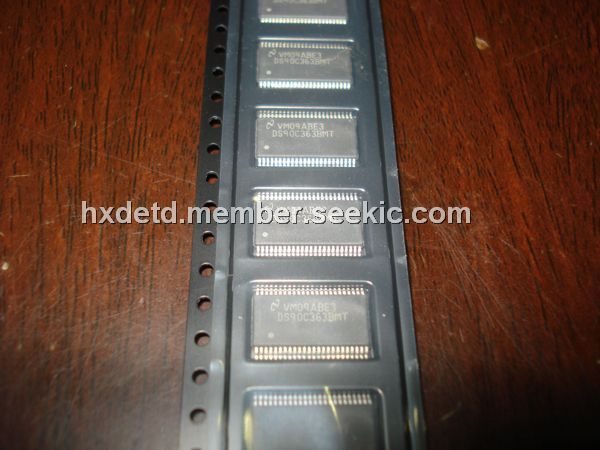

The DS90C363BMT is a +3.3V programmable LVDS transmitter with 18-bit flat panel display (FPD) link -65 MHz. The DS90C363BMT transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data are sampled and transmitted. At a transmit clock frequency of 65 MHz, 18 bits of RGB data and 3 bits of LCD timing and control data (FPLINE, FPFRAME, DRDY) of the DS90C363BMT are transmitted at a rate of 455 Mbps per LVDS data channel.
Parametrics
DS90C363BMT absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)CMOS/TTL Input Voltage: -0.3V to (VCC + 0.3V); (3)LVDS Driver Output Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Output Short Circuit: Duration Continuous; (5)Junction Temperature: +150℃; (6)Storage Temperature: -65℃ to +150℃; (7)Lead Temperature(Soldering, 4 sec): +260℃.
Features
DS90C363BMT features: (1)18 to 68 MHz shift clock support; (2)Best–in–Class Set & Hold Times oTxINPUTs; (3)Tx power consumptio< 130 mW (typ) @65MHz Grayscale; (4)40% Less Power DissipatiothaBiCMOS Alternatives; (5)Tx Power-dowmode < 37μW (typ); (6)Supports VGA, SVGA, XGA and Dual Pixel SXGA.; (7)Narrow bus reduces cable size and cost; (8)Up to 1.3 Gbps throughput; (9)Up to 170 Megabytes/sec bandwidth; (10)345 mV (typ) swing LVDS devices for low EMI; (11)PLL requires no external components; (12)Compatible with TIA/EIA-644 LVDS standard; (13)Low profile 48-lead TSSOP package.
