Product Summary

The TLYM1108 is a Panel Circuit Indicator. The applications of the TLYM1108 include Instrumental panel Backlighting in Automotive equipment, message signboards, backlighting etc.

Parametrics

TLYM1108 absolute maximum ratings: (1)Forward Current: 70 mA; (2)Reverse Voltage: 4 V; (3)Power Dissipation: 203 mW; (4)Operation Temperature: -40 to 100 ℃; (5)Storage Temperature: -40 to 100 ℃.

Features

TLYM1108 features: (1)Surface-mount device; (2)3.2 (L) mm x 2.9 (W) mm x 1.9 (H) mm; (3)InGaA.P LEDs; (4)Colors: red, orange, yellow; (5)High luminous intensity; (6)Standard embossed tape packing: T11 (2000/reel), 4-mm tape reel; (7)High operating temperature: Topr = -40 to 100℃ / Tstg= -40 to 100℃.

Diagrams

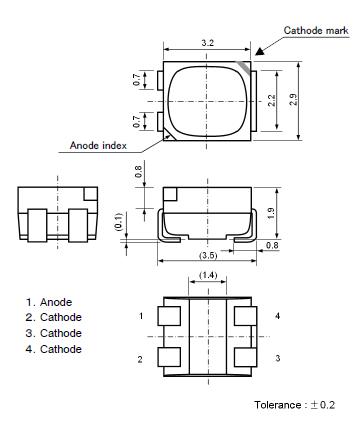

TLYM1108 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TLYM1108(T11)
TLYM1108(T11)
Toshiba
Standard LED - SMD LED YEL CLR 590NM PLCC-4 SMD
Data Sheet
0-1: $0.30
1-10: $0.28
10-100: $0.25
100-250: $0.23
