Product Summary

The SN74HC164DR is a 8-bit parallel-out serial shift register. The 8-bit shift register SN74HC164DR features AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum setup time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.

Parametrics

SN74HC164DR absolute maximum ratings: (1)Supply voltage range, VCC: –0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA.

Features

SN74HC164DR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 20 ns; (5)±4mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)AND-Gated (Enable/Disable) Serial Inputs; (8)Fully Buffered Clock and Serial Inputs; (9)Direct Clear.

Diagrams

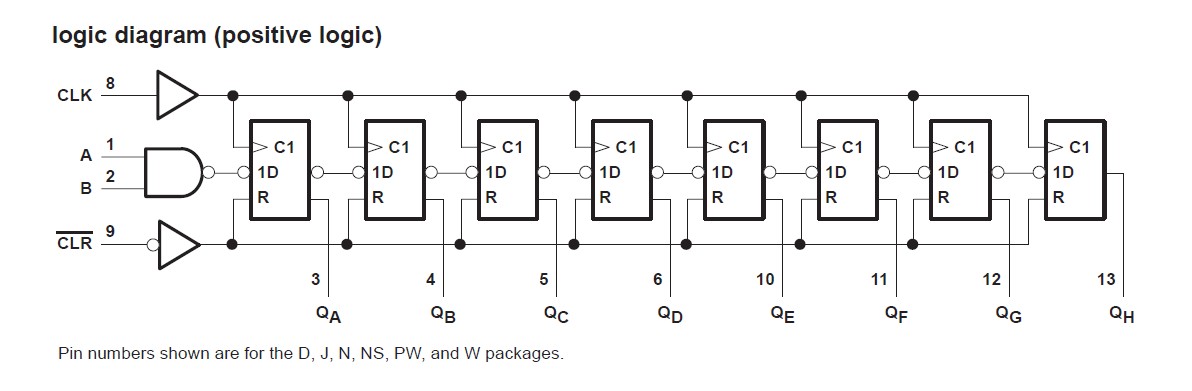

SN74HC164DR logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74HC164DR
SN74HC164DR

Texas Instruments

Counter Shift Registers 8-Bit Parallel Out Serial Register

Data Sheet

0-1: $0.32
1-25: $0.20
25-100: $0.17
100-250: $0.14
SN74HC164DRE4
SN74HC164DRE4

Texas Instruments

Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register

Data Sheet

0-1: $0.21
1-25: $0.16
25-100: $0.13
100-250: $0.12
SN74HC164DRG4
SN74HC164DRG4

Texas Instruments

Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register

Data Sheet

0-1: $0.29
1-25: $0.20
25-100: $0.17
100-250: $0.12
SN74HC164DRG3
SN74HC164DRG3

Texas Instruments

Registers 8B Para-Out Serial Shift Register

Data Sheet

0-1: $0.21
1-25: $0.16
25-100: $0.13
100-250: $0.12
