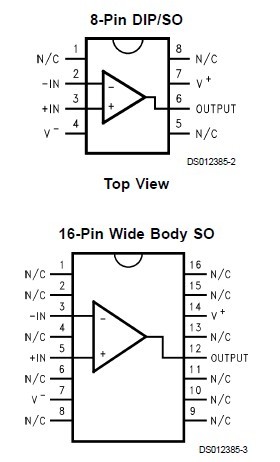

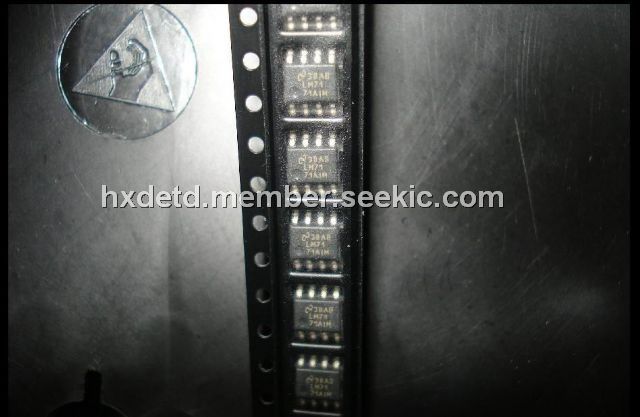

LM7171AIM

Very High Speed, High Output Current, Voltage Feedback Amplifier, SOP, 4100V/μs Slew Rate, 100 mA Output Current

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.72~1.05 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.72~1.05

PartNumber:: LM7171AIM

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-20

From Other Seller

Part Number:LM7171AIM
US $0.72 - 1.05
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM7171AIM is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier; yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171AIM is stable for gains as low as +2 or .1. It provides a very high slew rate at 4100V/μs and a wide unity-gain bandwidth of 200 MHz while consuming only 6.5 mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100 mA output current, the LM7171AIM can be used for video distribution, as a transformer driver or as a laser diode driver. Operation on ±15V power supplies allows for large signal swings and provides greater dynamic range and signal-to-noise ratio. The LM7171AIM offers low SFDR and THD, ideal for ADC/DAC systems. In addition, the LM7171AIM is specified for ±5V operation for portable applications.

Parametrics

LM7171AIM absolute maximum ratings: (1)ESD Tolerance: 2.5 kV; (2)Supply Voltage (V+–V.) 36V; (3)Differential Input Voltage: ±10V; (4)Output Short Circuit to Ground: Continuous; (5)Storage Temperature Range: -65℃ to +150℃; (6)Maximum Junction Temperature: 150℃.
