Product Summary
The EP1K30QC208-3N is a programmable logic device. The EP1K30QC208-3N provides a die-efficient, low-cost architecture by combining look-up table (LUT) architecture with EABs. LUT-based logic of the EP1K30QC208-3N provides optimized performance and efficiency for data-path, register intensive, mathematical, or digital signal processing (DSP) designs, while EABs implement RAM, ROM, dual-port RAM, or first-in first-out (FIFO) functions.
Parametrics
EP1K30QC208-3N absolute maximum ratings: (1)VCCINT Supply voltage With respect to ground: –0.5 to 3.6 V; (2)VCCIO: –0.5 to 4.6 V; (3)VI DC input voltage: –2.0 to 5.75 V; (4)IOUT DC output current, per pin: –25 to 25 mA; (5)TSTG Storage temperature No bias: –65 to 150 ℃; (6)TAMB Ambient temperature Under bias: –65 to 135 ℃; (7)TJ Junction temperature PQFP, TQFP, and BGA packages, under bias: 135 ℃.
Features
EP1K30QC208-3N features: (1)Programmable logic devices (PLDs), providing low cost system-on-a-programmable-chip (SOPC) integration in a single device; (2)High density; (3)Cost-efficient programmable architecture for high volume applications; (4)System-level features; (5)Extended temperature range.

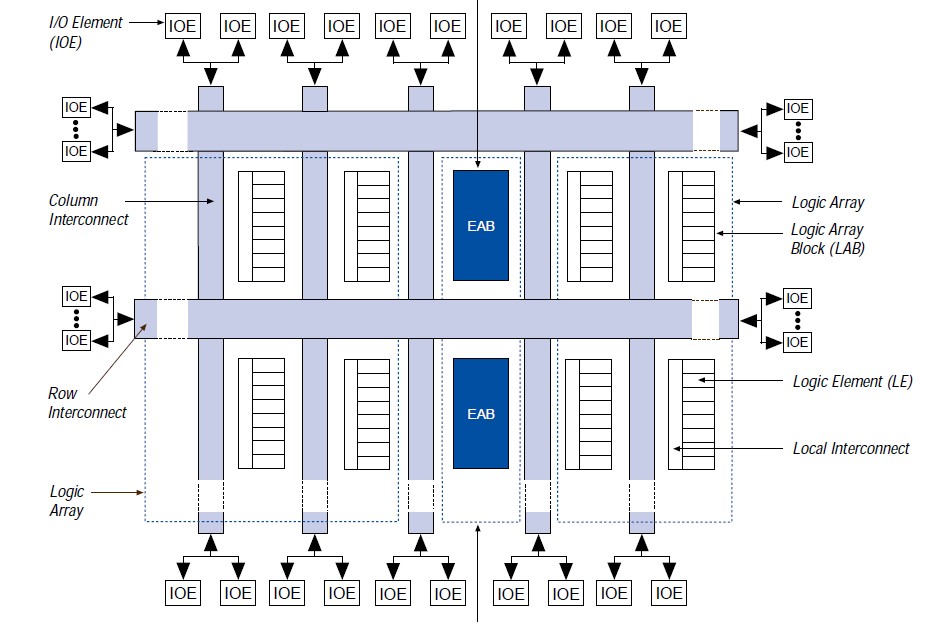

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

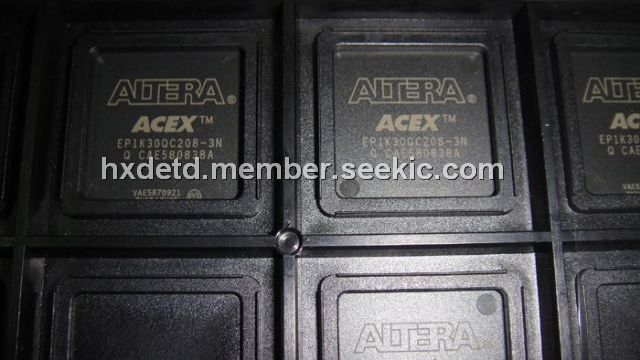

 EP1K30QC208-3N |
|
IC ACEX 1K FPGA 30K 208-PQFP |
Data Sheet |
|
|
||||||
