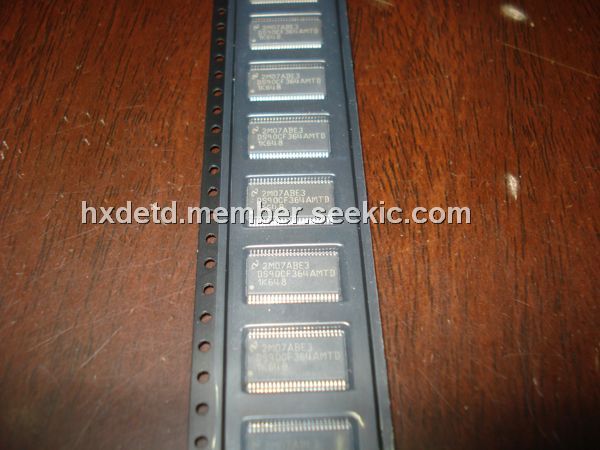

DS90CF364AMTD

receiver, TSSOP, -0.3V to +4V, 20 to 65 MHz, Low profile 56-lead

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.15~2.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.15~2.25

PartNumber:: DS90CF364AMTD

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-18

From Other Seller

Part Number:DS90CF364AMTD
US $2.15 - 2.25
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

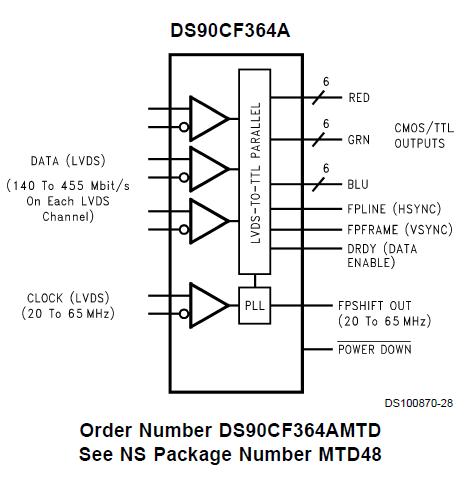

The DS90CF364AMTD receiver converts the four LVDS data streams (Up to 1.8 Gbps throughput or 227 Megabytes/sec bandwidth) back into parallel 28 bits of CMOS/TTL data (24 bits of RGB and 4 bits of Hsync, Vsync, DE and CNTL). Also available is the DS90CF364AMTD that converts the three LVDS data streams (Up to 1.3 Gbps throughput or 170 Megabytes/sec bandwidth) back into parallel 21 bits of CMOS/TTL data (18 bits of RGB and 3 bits of Hsync, Vsync and DE).

Parametrics

DS90CF364AMTD absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)CMOS/TTL Input Voltage: -0.3V to (VCC + 0.3V); (3)CMOS/TTL Output Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Receiver Input Voltage: -0.3V to (VCC + 0.3V); (5)Junction Temperature: +150℃; (6)Storage Temperature: -65℃ to +150℃; (7)Lead Temperature (Soldering, 4 sec): +260℃; (8)Solder Reflow Temperature (20 sec for FBGA): +220℃.

Features

DS90CF364AMTD features: (1)20 to 65 MHz shift clock support; (2)50% duty cycle on receiver output clock; (3)Best–in–Class Set & Hold Times on RxOUTPUTs; (4)Rx power consumption <142 mW (typ) @65MHz Grayscale; (5)Rx Power-down mode <200μW (max); (6)ESD rating >7 kV (HBM), >700V (EIAJ); (7)Supports VGA, SVGA, XGA and Dual Pixel SXGA; (8)PLL requires no external components; (9)Compatible with TIA/EIA-644 LVDS standard; (10)Low profile 56-lead or 48-lead TSSOP package; (11)DS90CF384A is also available in a 64 ball, 0.8mm fine pitch ball grid array (FBGA) package.
