Product Summary

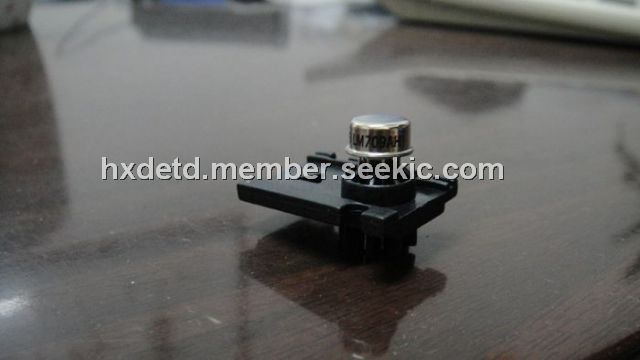

The LM709AH is a monolithic operational amplifier intended for general-purpose applications. Operation is completely specified over the range of voltages commonly used for the LM709AH.The design, in addition to providing high gain, minimizes both offset voltage and bias currents. Further, the class-B output stage gives a large output capability with minimum power drain.

Parametrics

LM709AH absolute maximum ratings: (1)Supply Voltage Power Dissipation: 300 mW; (2)Differential Input Voltage:±5V; (3)Input Voltage:±10V; (4)Output Short-Circuit Duration (TA = +25℃): 5 seconds; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec.): 300℃.

Features

LM709AH features: (1)Input Offset Voltage TA=25℃, RS ≤ 10 kΩ: 0.6 to 2.0mV; (2)Input Bias Current TA=25℃: 100 to 200nA; (3)Input Offset Current TA=25℃: 10 to 50nA; (4)Input Resistance TA=25℃: 350 to 700kΩ; (5)Output Resistance TA=25℃: 150X; (6)Supply Current TA=25℃, VS=g15V: 2.5 to 3.6mA.

Diagrams

LM709AH Connection Diagrams
