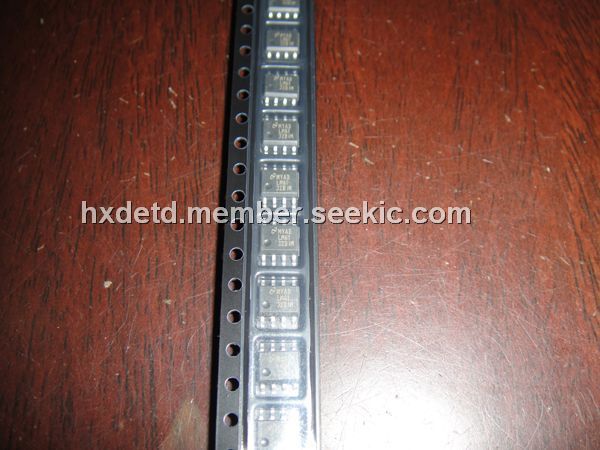

Product Summary

The LM6132BIM is a low power 10 MHz rail-to-rail I/O operational amplifier. The LM6132BIM provides new levels of speed vs power performance in applications where low voltage supplies or power limitations previously made compromise necessary. With only 360 μA/amp supply current, the 10 MHz gain-bandwidth of this device supports new portable applications where higher power devices unacceptably drain battery life.

Parametrics

LM6132BIM absolute maximum ratings: (1)Supply Voltage 1.8V ≤ VS ≤ 24V; (2)Junction Temperature Range: -40℃ ≤ TJ ≤ +85℃; (3)Thermal resistance (qJA). N Package, 8-pin Molded DIP: 115℃/W; (4)ESD Tolerance: 2500V; (5)Differential Input Voltage: 15V; (6)Voltage at Input/Output Pin: (V+)+0.3V, (V.).0.3V; (7)Supply Voltage (V+–V.): 35V; (8)Current at Input Pin: ±10 mA.

Features

LM6132BIM features: (1)Rail-to-Rail input CMVR -0.25V to 5.25V; (2)Rail-to-Rail output swing 0.01V to 4.99V; (3)High gain-bandwidth, 10 MHz at 20 kHz; (4)Slew rate 12 V/μs; (5)Low supply current 360 μA/Amp; (6)Wide supply range 2.7V to over 24V; (7)CMRR 100 dB; (8)Gai100 dB with RL = 10k; (9)PSRR 82 dB.

Diagrams

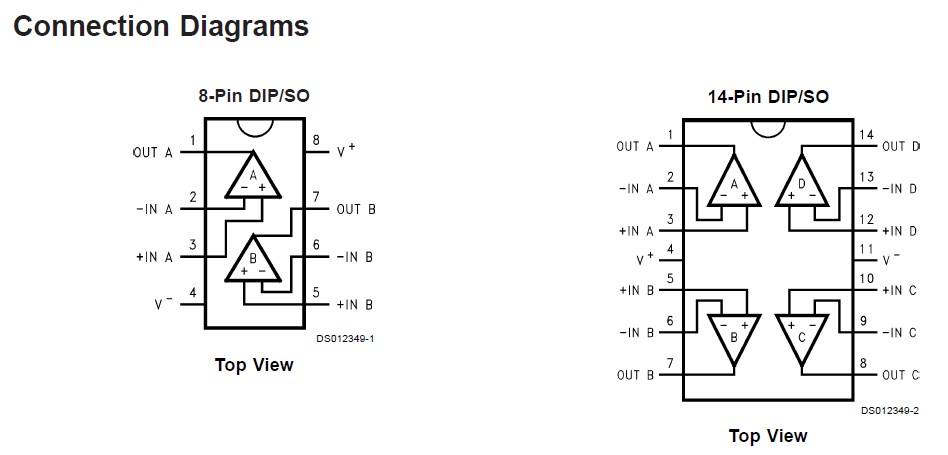

LM6132BIM Connection Diagrams
