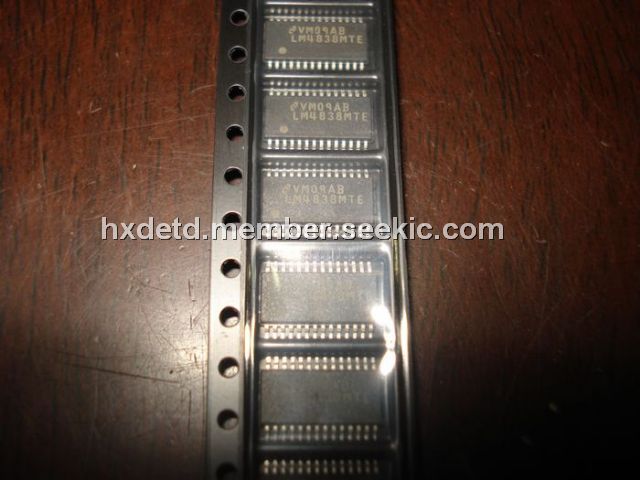

Product Summary
The LM4838MTE is a monolithic integrated circuit that provides DC volume control, and stereo bridged audio power amplifiers capable of producing 2W into 4Ω with less than 1.0% THD or 2.2W into 3Ω (Note 2) with less than 1.0% THD. The LM4838MTE incorporates a DC volume control, stereo bridged audio power amplifiers and a selectable gain or bass boost, making LM4838MTE optimally suited for multimedia monitors, portable radios, desktop, and portable computer applications. The LM4838MTE features an externally controlled, low-power consumption shutdown mode, and both a power amplifier and headphone mute for maximum system flexibility and performance.
Parametrics
LM4838MTE absolute maximum ratings: (1)Power@ 4Ohms, 1% THD: 2 Watt ; (2)Power@ 8Ohms, 1% THD: 1.1 Watt ; (3)Power@ 8Ohms, 10% THD: 1.5 Watt ; (4)THD: 0.3 % ; (5)PSRR: 74 dB ; (6)SNR: 93 dB ; (7)Channels: 2 Channels ; (8)Supply Range: +2.7 to +5.5 V ; (9)THD Conditions: Po=1W @Vs=5V, 20Hz-20kHz ; (10)PSRR Conditions: 120 Hz RL=8 Ohms ; (11)SNR Conditions: Pout=1.1W ; (12)User Supply: 5 Volt ; (13)Shutdown Type: High; (14)Temperature Min: -40℃; (15)Temperature Max: 85℃.
Features
LM4838MTE features: (1)DC Volume Control Interface; (2)System Beep Detect; (3)Stereo switchable bridged/single-ended power amplifiers; (4)Selectable internal/external gain and bass boost; (5)“Click and pop” suppression circuitry; (6)Thermal shutdown protection circuitry.

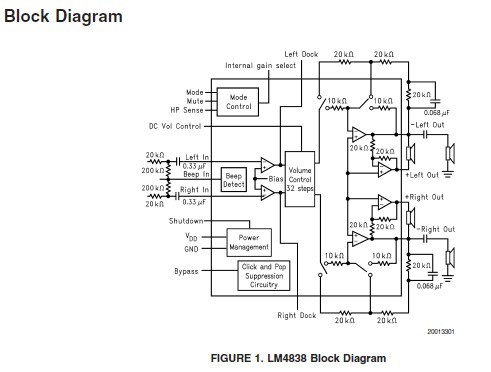

Diagrams
