Product Summary

The ADC10738CIWM is a 10-bit plus sign serial I/O A/D converters with mux. The ADC10738CIWM 10-bit plus sign successive approximation A/D converter features versatile analog input multiplexers, sample/hold and a 2.5V band-gap reference. The 1-, 2-, 4-, or 8-channel multiplexer can be software configured for single-ended or differential mode of operation. An input sample/hold of the ADC10738CIWM is implemented by a capacitive reference ladder and sampled-data comparator. This allows the analog input to vary during the A/D conversion cycle.

Parametrics

ADC10738CIWM absolute maximum ratings: (1)Supply Voltage (V+ = AV+ = DV+): 6.5V; (2)Total Reference Voltage(VREF+–VREF.): 6.5V; (3)Voltage at Inputs and Outputs: V+ + 0.3V to .0.3V; (4)Input Current at Any Pin: 30 mA; (5)Package Input Current: 120 mA; (6)Package Dissipation at TA = 25℃: 500 mW; (7)ESD Susceptability. Human Body Model: 2500V; (8)Machine Model: 150V; (9)Soldering Information N packages (10 seconds): 260℃.

Features

ADC10738CIWM features: (1)Software or hardware power down; (2)Analog input sample/hold function; (3)Ratiometric or absolute voltage referencing; (4)No zero or full scale adjustment required; (5)No missing codes over temperature; (6)TTL/CMOS input/output compatible; (7)Standard DIP and SO packages

Diagrams

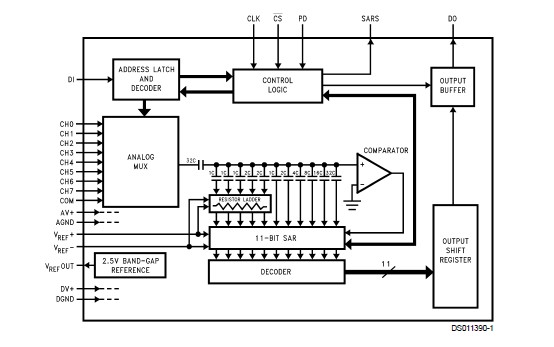

ADC10738CIWM Simplified Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

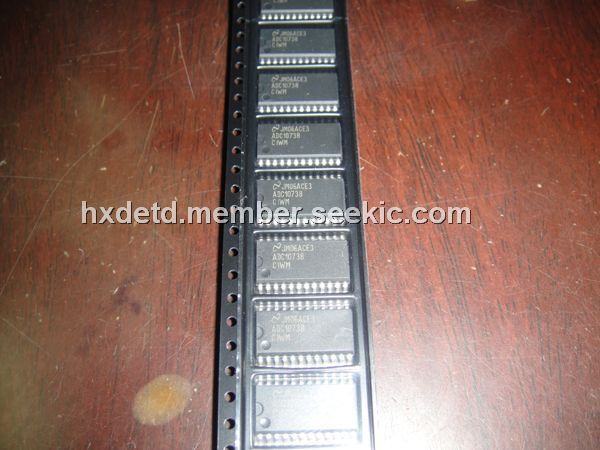

ADC10738CIWM
ADC10738CIWM
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-180: $2.15
180-270: $1.93
270-510: $1.73
510-1020: $1.46
ADC10738CIWM/NOPB
ADC10738CIWM/NOPB
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-1: $2.50
1-25: $2.00
25-100: $1.82
100-250: $1.65
ADC10738CIWMX/NOPB
ADC10738CIWMX/NOPB
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-575: $1.84
575-1000: $1.47
1000-2500: $1.39
2500-5000: $1.34
ADC10738CIWMX
ADC10738CIWMX
National Semiconductor (TI)
ADC (A/D Converters)
Data Sheet
0-1000: $1.46
1000-3000: $1.39
3000-5000: $1.33
