Product Summary

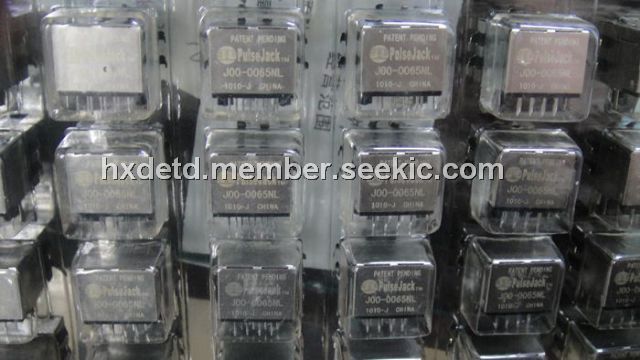

The J00-0065NL is a 10/100 Base-TX RJ45 1x1 Tab-DOWN 8-pin Integrated Magnetics Connector, which is designed to support high volume cost-conscious consumer applications such as: ADSL modems, Cable modems, STB and Video on Demand.

Parametrics

J00-0065NL absolute maximum ratings: (1)Return Loss: -18 dB at 1-10MHz, -14 dB at 10-30MHz, -12 dB at 30-60MHz, -10 dB at 60-80MHz; (2)Crosstalk: -35 dB at 1-30MHz, -35 dB at 30-60MHz, -30 dB at 60-100MHz; (3)Common Mode Rejection: -20 dB at 1-50MHz, -15 dB at 50-150MHz; (4)Hipot: 1500 Vrms @60Hz 1 MIN.

Features

J00-0065NL features: (1)RoHS-5 peak wave solder temperature rating 235℃; (2)RoHS-6 peak wave solder temperature rating 260℃; (3)Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP.

Diagrams

J00-0065NL Electrical Schematics diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
J00-0065NL
J00-0065NL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
0-1: $4.09
1-10: $2.92
10-100: $2.36
100-500: $2.05
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
J00-0014NL
J00-0014NL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
0-1: $3.51
1-10: $2.90
10-100: $2.13
100-500: $1.84
J00-0025NL
J00-0025NL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10BASET
Data Sheet
0-200: $1.53
200-500: $1.26
500-1000: $1.19
1000-2500: $1.13
J00-0051
J00-0051
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10BASET W/LEDS
Data Sheet
Negotiable
J00-0061
J00-0061
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
Negotiable
J00-0061NL
J00-0061NL
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
0-1: $3.51
1-10: $2.90
10-100: $2.13
100-500: $1.84
J00-0066
J00-0066
Pulse
Ethernet & Telecom Connectors 1X1 TAB DOWN 10/100
Data Sheet
Negotiable
