Product Summary
The HCPL-4200-000E is a optically coupled 20 mA current loop receiver. The HCPL-4200-000E optocoupler is designed to operate as a receiver in equipment using the 20 mA Current Loop. 20 mA current loop systems conventionally signal a logic high state by transmitting 20 mA of loop current (MARK), and signal a logic low state by allowing no more than a few milliamperes of loop current (SPACE). Optical coupling of the signal from the 20 mA current loop to the logic output breaks ground loops and provides for a very high common mode rejection.
Parametrics
HCPL-4200-000E absolute maximum ratings: (1)Storage Temperature: -55℃ to +125℃; (2)Operating Temperature: -40℃ to +85℃; (3)Lead Solder Temperature: 260℃ for 10 s (1.6 mm below seating plane); (4)Supply Voltage VCC: 0 V to 20 V; (5)Average Input Current II: -30 mA to 30 mA; (6)Peak Transient Input Current - II: 0.5 A; (7)Enable Input Voltage VE: -0.5 V to 20 V; (8)Output Voltage VO: -0.5 V to 20 V; (9)Average Output Current IO: 25 mA; (10)Input Power Dissipation PI: 90 mW; (11)Output Power Dissipation PO: 210 mW; (12)Total Power Dissipation P: 255 mW.
Features
HCPL-4200-000E features: (1)Data output compatible with LSTTL, TTL and CMOS; (2)20 K Baud data rate at 1400 metres line length; (3)Guaranteed On and Off thresholds; (4)LED is protected from excess current; (5)Input threshold hysteresis; (6)Three-state output compatible with data buses; (7)Internal shield for high Common Mode Rejection.

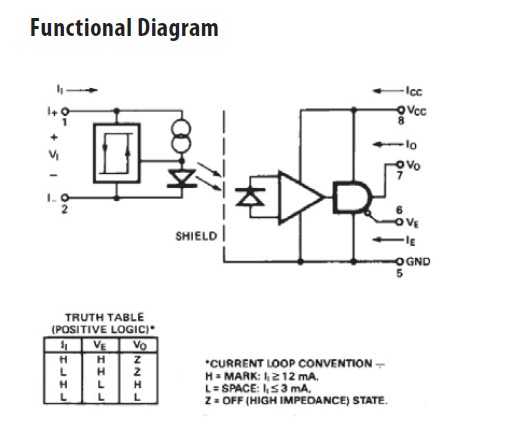

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-4200-000E |
Avago Technologies |
Logic Output Optocouplers 20mA Current Loop |
Data Sheet |
|
|
||||||||||||
