Product Summary
The HFJ11-1G01E is a single & ganged gigabit fastjack. RJ-45 connector. The HFJ11-1G01E is pleased to offer this new series of small footprint Gigabit single and Ganged FastJack., integrated connectors. The HFJ11-1G01E is ideal for hi-density switch applications requiring the highest performance in a minimal amount of real estate. The HFJ11-1G01E is compatible with all leading silicon vendors Phy. Please contact your local HALO Representative for more information.
Parametrics
HFJ11-1G01E absolute maximum ratings: (1)Operating Temp: 0 to +70℃; (2)Isolation Voltage: 1,500 Vrms; (3)OCL (100KHz, 0.1Vrms, 8mA): 350uH; (4)CMR (0.1-100MHz): -40dB typ; (5)Insertion Loss (0.1-100MHz): -1.1dB; (6)Crosstalk (0.1-100MHz): -[33-20log(F/100Mhz)]dB typ.

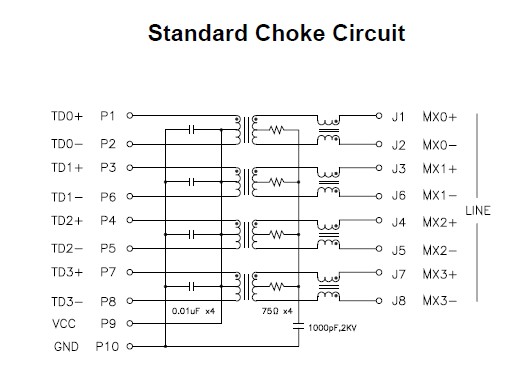

Diagrams
 |
