DS90CF363MTD

+3.3V LVDS Transmitter, Low profile 48-lead TSSOP package, Power-down mode

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.47 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.45~0.47

PartNumber:: DS90CF363MTD

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-14

From Other Seller

Part Number:DS90CF363MTD
US $0.45 - 0.47
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
M27C4001-10F1

US $2.00 - 3.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

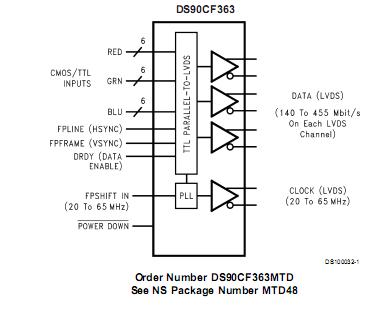

The DS90CF363MTD is a +3.3V LVDS Transmitter. The DS90CF363MTD converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. The DS90CF363MTD is an ideal means to solve EMI and cable size problems associated with wide, high speed TTL interfaces. Every cycle of the transmit clock 21 bits of input data are sampled and transmitted.

Parametrics

DS90CF363MTD absolute maximum ratings: (1)Supply Voltage (VCC):-0.3V to +4V; (2)CMOS/TTL Input Voltage:-0.3V to (VCC + 0.3V); (3)LVDS Driver Output Voltage:-0.3V to (VCC + 0.3V); (4)LVDS Output Short Circuit: Duration:Continuous; (5)Junction Temperature:+150℃; (6)Storage Temperature:-65℃ to +150℃; (7)Lead Temperature(Soldering, 4 sec):+260℃.

Features

DS90CF363MTD features: (1)20 to 65 MHz shift clock support; (2)Single 3.3V supply; (3)Chipset (Tx + Rx) power consumption < 250 mW (typ); (4)Power-down mode (< 0.5 mW total); (5)Single pixel per clock XGA (1024x768) ready; (6)Supports VGA, SVGA, XGA and higher addressability; (7)Up to 170 Megabytes/sec bandwidth; (8)Up to 1.3 Gbps throughput; (9)Narrow bus reduces cable size and cost; (10)290 mV swing LVDS devices for low EMI; (11)PLL requires no external components; (12)Low profile 48-lead TSSOP package; (13)Falling edge data strobe Transmitter; (14)Compatible with TIA/EIA-644 LVDS standard; (15)ESD rating > 7kV; (16)Operating Temperature: -40℃ to +85℃.
