Product Summary
The AM79C874VC-1LP is a Low Power 10/100-TX/FX Ethernet Transceiver. It provides the physical (PHY) layer and transceiver functions for one 10/100 Mbps Ethernet port. The AM79C874VC-1LP delivers the dual benefits of CMOS low power consumption and small package size. Operating at 3.3 V, it consumes only 0.3 W. The AM79C874VC-1LP is IEEE 802.3 compliant. It can receive and transmit data reliably at over 130 meters. It includes on-chip input filtering and output waveshaping for unshielded twisted pair operation without requiring external filters or chokes.
Parametrics
AM79C874VC-1LP absolute maximum ratings: (1)Storage Temperature:-55℃ to +150℃; (2)Ambient Temperature Under Bias:-55℃ to +150℃; (3)Supply Voltage:-0.5 V to +5.5 V; (4)Voltage Applied to any input pin:-0.5 V to VDD.
Features
AM79C874VC-1LP features: (1)10/100BASE-TX Ethernet PHY device with 100BASE-FX fiber optic support; (2)Typical power consumption of 0.3 W; (3)Sends/receives data reliably over cable lengths greater than 130 meters; (4)MII mode supports 100BASE-X and 10BASE-T; (5)7-Wire (General Purpose Serial Interface (GPSI)) mode supports 10BASE-T; (6)Three PowerWise management modes (from 300 mW typical); (7)Waveshaping – no external filter required; (8)Full and half-duplex operation with full-featured Auto-Negotiation function; (9)LED indicators: Link, TX activity, RX activity, Collision, 10 Mbps, 100 Mbps, Full or Half Duplex; (10)MDIO/MDC operates up to 25 MHz; (11)Automatic Polarity Detection; (12)Built-in loopback and test modes; (13)Single 3.3-V power supply with 5-V I/O tolerance; (14)12 mm x 12 mm 80-pin TQFP package; (15)Support for industrial temperature(-40℃ to +85℃).

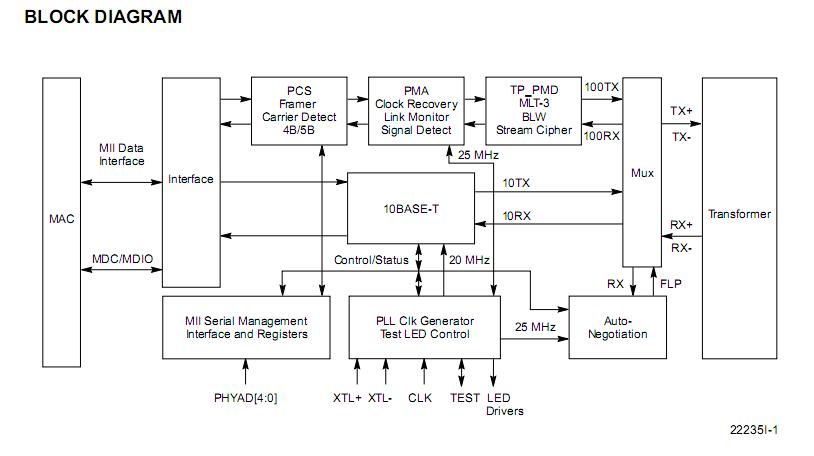

Diagrams
