Product Summary
The UF5408-E3 is a soft recovery ultrafast plastic rectifier. The UF5408-E3 is for use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication.
Parametrics
UF5408-E3 absolute maximum ratings: (1)Maximum repetitive peak reverse voltage VRRM: 1000V; (2)Maximum RMS voltage VRMS: 700 V; (3)Maximum DC blocking voltage VDC: 1000 V; (4)Maximum average forward rectified current, 0.375" (9.5 mm)lead length at TA= 55 ℃, IF(AV): 3.0 A; (5)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM: 150 A; (6)Operating junction and storage temperature range, TJ, TSTG: - 55 to + 150℃.
Features
UF5408-E3 features: (1)Glass passivated chip junction; (2)Ultrafast reverse recovery time; (3)Low forward voltage drop; (4)Low switching losses, high efficiency; (5)High forward surge capability; (6)Solder dip 275℃ max. 10 s, per JESD 22-B106; (7)Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC.

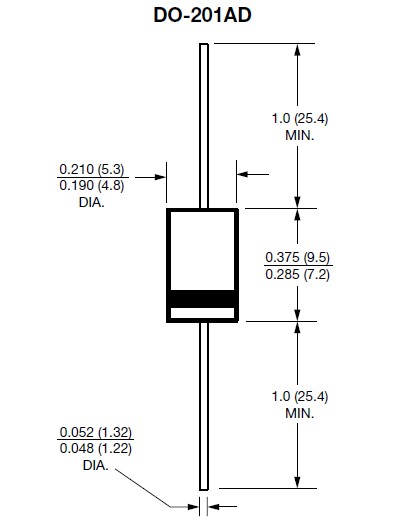

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UF5408-E3/1 |
Vishay Semiconductors |
Rectifiers 1000 Volt 3.0A 75ns 150 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
|
UF5408-E3/23 |
Vishay Semiconductors |
Rectifiers 1000 Volt 3.0A 75ns 150 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
 |
UF5408-E3/73 |
Vishay Semiconductors |
Rectifiers 1000 Volt 3.0A 75ns 150 Amp IFSM |
Data Sheet |
|
|
||||||||||||
|
UF5408-E3/54 |
Vishay Semiconductors |
Rectifiers Vr/1000V Io/3A |
Data Sheet |
|
|
||||||||||||
|
UF5408-E3/4 |
Vishay Semiconductors |
Rectifiers 1000 Volt 3.0A 75ns 150 Amp IFSM |
Data Sheet |
Negotiable |
|
||||||||||||
