Product Summary
The SN74HC166DR is a 8-bit parallel-load shift register. The SN74HC166DR register features gated clock (CLK, CLK INH) inputs and an overriding clear (CLR) input. The parallel-in or serial-in modes are established by the shift/load (SH/LD) input. When high, SH/LD enables the serial (SER) data input and couples the eight flip-flops for serial shifting with each clock (CLK) pulse. When low, the parallel (broadside) data inputs of the SN74HC166DR are enabled, and synchronous loading occurs on the next clock pulse. During parallel loading, serial data flow is inhibited.
Parametrics
SN74HC166DR absolute maximum ratings: (1)Supply voltage range, VCC: 0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA: D package: 73℃/W.
Features
SN74HC166DR features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 13 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Synchronous Load; (8)Direct Overriding Clear; (9)Parallel-to-Serial Conversion.

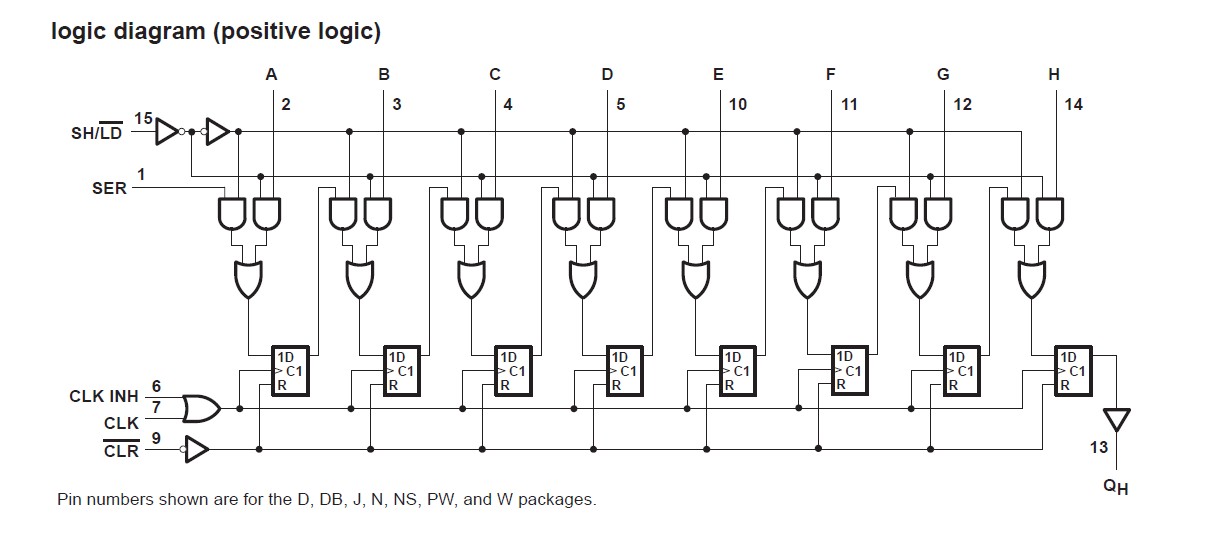

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN74HC166DR |
Texas Instruments |
Counter Shift Registers 8bit Parl Load Shift |
Data Sheet |
|
|
||||||||||||
|
SN74HC166DRE4 |
Texas Instruments |
Counter Shift Registers 8-Bit Parallel-Load Shift Register |
Data Sheet |
|
|
||||||||||||
|
SN74HC166DRG4 |
Texas Instruments |
Counter Shift Registers 8B Parallel Load Shift Registers |
Data Sheet |
|
|
||||||||||||
