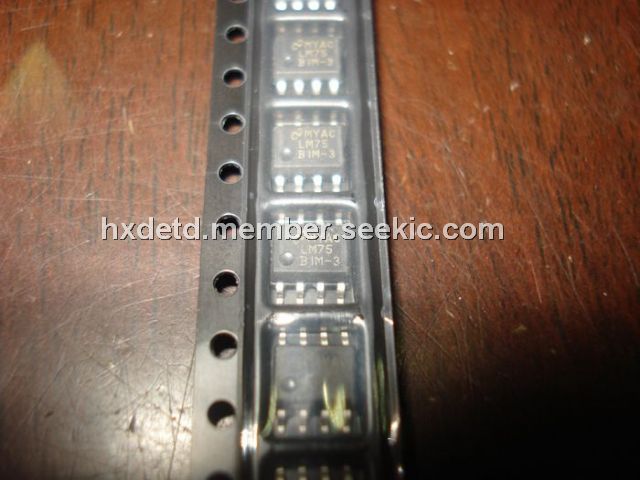

LM75BIM-3

SOP8, digital temperature sensor, thermal WATCHDOG, two-wire interface, 20 mA, 6.5V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.54~0.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.54~0.56

PartNumber:: LM75BIM-3

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-13

From Other Seller

Part Number:LM75BIM-3
US $0.54 - 0.56
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

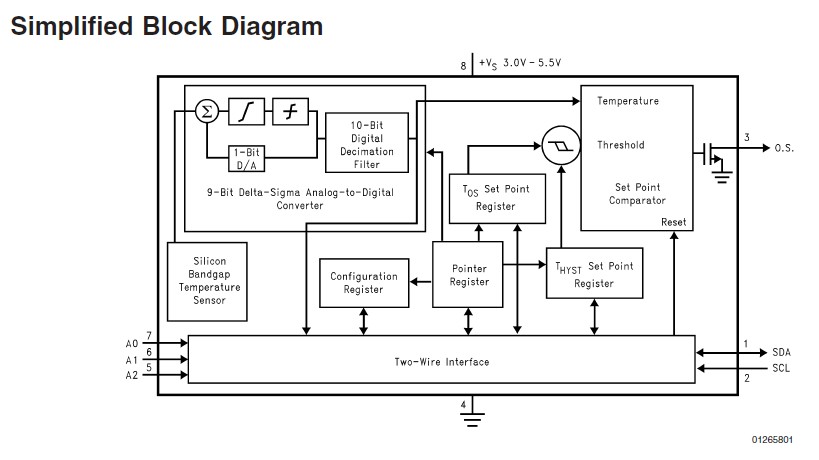

The LM75BIM-3 is a digital temperature sensor and thermal WATCHDOG with two-wire interface. The LM75BIM-3 is a temperature sensor, Delta-Sigma analog-todigital converter, and digital over-temperature detector with I2C interface. The host can query the LM75BIM-3 at any time to read temperature. The open-drain Overtemperature Shutdown(O.S.) output of the LM75BIM-3 becomes active when the temperature exceeds a programmable limit. This pin can operate in either omparator or interrupt mode.

Parametrics

LM75BIM-3 absolute maximum ratings: (1)Supply Voltage: -0.3V to 6.5V; (2)Voltage at any Pin: -0.3V to +VS + 0.3V; (3)Input Current at any Pin: 5 mA; (4)Package Input Current: 20 mA; (5)O.S. Output Sink Current: 10 mA; (6)O.S. Output Voltage: 6.5V; (7)Storage Temperature: -65℃ to +150℃; (8)Soldering Information: Lead Temperature.

Features

LM75BIM-3 features: (1)SOP-8 and Mini SOP-8 (MSOP) packages save space; (2)I2C Bus interface; (3)Separate open-draioutput pioperates as interrupt or comparator/thermostat output Register readback capability; (4)Power up defaults permit stand-alone operatioas thermostat; (5)Shutdowmode to minimize power consumption; (6)Up to 8 LM75s cabe connected to a single bus; (7)UL Recognized Component.
