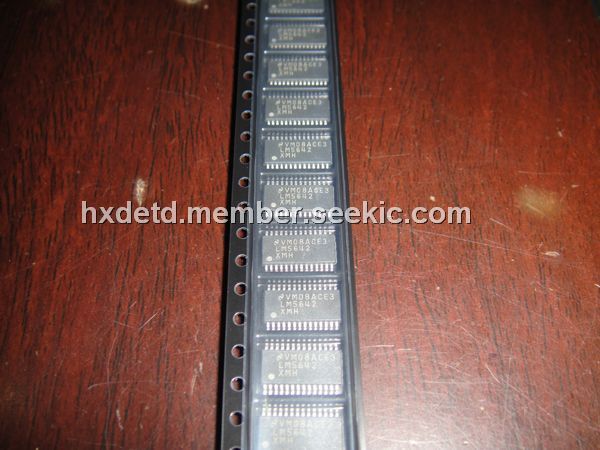

LM5642XMH

High Voltage, Dual Synchronous, Buck Converter, Oscillator Synchronization, TSSOP-28, 200kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.53~1.59 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.53~1.59

PartNumber:: LM5642XMH

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-13

From Other Seller

Part Number:LM5642XMH
US $1.53 - 1.59
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM5642XMH consists of two current mode synchronous buck regulator controllers operating 180° out of phase with each other at a normal switching frequency of 200kHz. The two switching regulator outputs of LM5642XMH can also be paralleled to operate as a dual-phase, single output regulator.

Parametrics

LM5642XMH absolute maximum ratings: (1)VIN, ILIM1, ILIM2, KS1, KS2: -0.3V to 38V; (2)SW1, SW2, RSNS1, RSNS2: -0.3 to (VIN + 0.3)V; (3)FB1, FB2, VDD1, VDD2: -0.3V to 6V; (4)SYNC, COMP1, COMP2, UV Delay: -0.3V to (VLIN5+0.3)V; (5)ON/SS1, ON/SS2: -0.3V to (VLIN5 +0.6)V; (6)CBOOT1, CBOOT2: 43V; (7)CBOOT1 to SW1, CBOOT2 to SW2: -0.3V to 7V; (8)LDRV1, LDRV2: -0.3V to (VDD+0.3)V; (9)HDRV1 to SW1, HDRV2 to SW2: -0.3V; (10)HDRV1 to CBOOT1, HDRV2 to CBOOT2: +0.3V; (11)Power Dissipation (TA = 25℃): 1.1W; (12)Ambient Storage Temp. Range: -65℃ to +150℃; (13)Soldering Dwell Time, Temp, Wave: 4 sec, 260℃; (14)Soldering Dwell Time, Temp, Infrared: 10sec, 240℃; (15)Soldering Dwell Time, Temp, Vapor Phase: 75sec, 219℃; (16)ESD Rating: 2kV.

Features

LM5642XMH features: (1)Two synchronous buck regulators; (2)180° out of phase operation; (3)200kHz fixed nominal frequency; (4)4.5V to 36V input range; (5)50μA Shutdown current; (6)Adjustable output from 1.3V to 90% of Vin; (7)0.04% (typical) line and load regulation accuracy; (8)Current mode control with or without a sense resistor.
