Product Summary
The ADC1175CIMTC is a low power, 20 Msps analog-to-digital converter that digitizes signals to 8 bits while consuming just 60 mW of power (typ). The ADC1175CIMTC uses a unique architecture that achieves 7.5 Effective Bits. Output formatting is straight binary coding.
Parametrics
ADC1175CIMTC absolute maximum ratings: (1)AVDD, DVDD: 6.5V; (2)Voltage on Any Pin: -0.3V to 6.5V; (3)VRT, VRB: AVSS to AVDD; (4)CLK, OE Voltage: -0.5 to (AVDD + 0.5V); (5)Digital Output Voltage: DVSS to DVDD; (6)Input Current: ±25mA; (7)Package Input Current: ±50mA; (8)ESD Susceptibility. Human Body Model: 2000V. Machine Model: 200V; (9)Soldering Temp., Infrared, 10. sec.: 300℃; (10)Storage Temperature: -65℃ to +150℃.
Features
ADC1175CIMTC features: (1)Internal Sample-and-Hold Function; (2)Single +5V Operation; (3)Internal Reference Bias Resistors; (4)Industry Standard Pinout; (5)TRI-STATE Outputs.

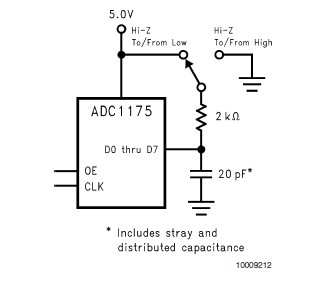

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

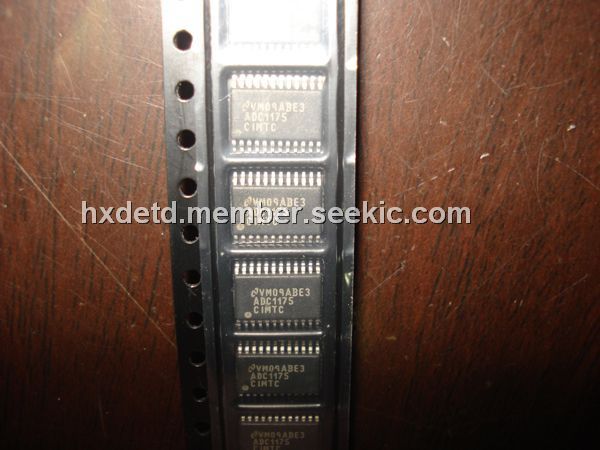

 ADC1175CIMTC |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
 |
ADC1175CIMTC/NOPB |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
|
ADC1175CIMTCX/NOPB |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
|
ADC1175CIMTCX |
National Semiconductor (TI) |
ADC (A/D Converters) |
Data Sheet |
|
|
||||||||||||
