Product Summary
The LM2903DR is a dual differential comparator. The LM2903DR consists of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain of the LM2903DR is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Parametrics
LM2903DR absolute maximum ratings: (1)Supply voltage, VCC: 36 V; (2)Differential input voltage, VID: ±36 V; (3)Input voltage range, VI (either input): 0.3 V to 36 V; (4)Output voltage, VO: 36 V; (5)Output current, IO: 20 mA; (6)Duration of output short-circuit to ground: Unlimited.
Features
LM2903DR features: (1)Low Input Bias Current: 25 nA Typ; (2)Low Input Offset Current: 3 nA Typ; (3)Low Input Offset Voltage: 2 mV Typ; (4)Common-Mode Input Voltage Range Includes Ground; (5)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage ±36 V; (6)Low Output Saturation Voltage; (7)Output Compatible With TTL, MOS, and CMOS.

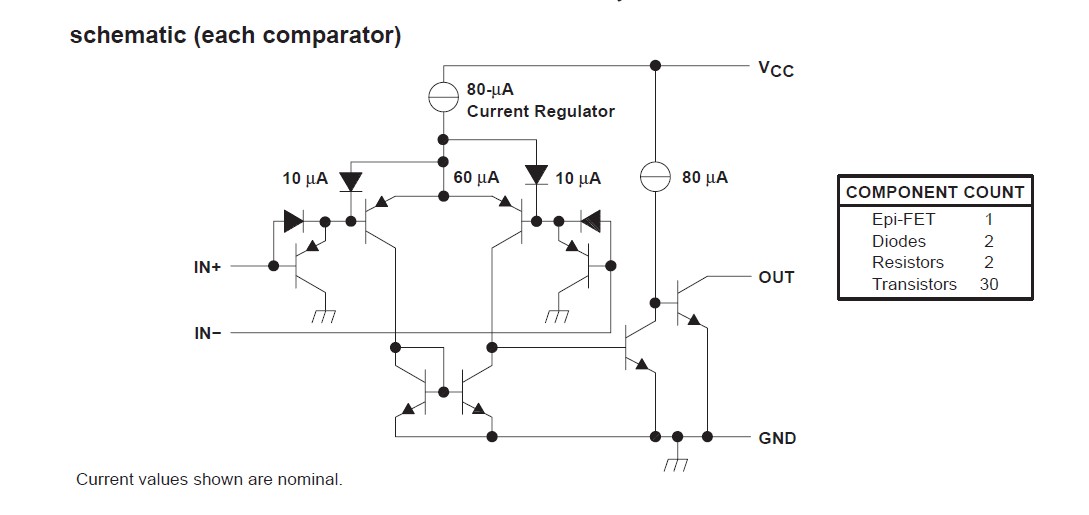

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LM2903DR |
Texas Instruments |
Comparator ICs Dual Diff Ind Temp |
Data Sheet |
|
|
||||||||||||
|
LM2903DR2 |
ON Semiconductor |
Comparator ICs 2-36V Dual |
Data Sheet |
Negotiable |
|
||||||||||||
|
LM2903DRG4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
||||||||||||
|
LM2903DRG3 |
Texas Instruments |
Comparator ICs Dual Diff Comparator |
Data Sheet |
|
|
||||||||||||
|
LM2903DR2G |
ON Semiconductor |
Comparator ICs 2-36V Dual -40 to 105 deg C |
Data Sheet |
|
|
||||||||||||
|
LM2903DRE4 |
Texas Instruments |
Comparator ICs Dual Differential Comparator |
Data Sheet |
|
|
||||||||||||
