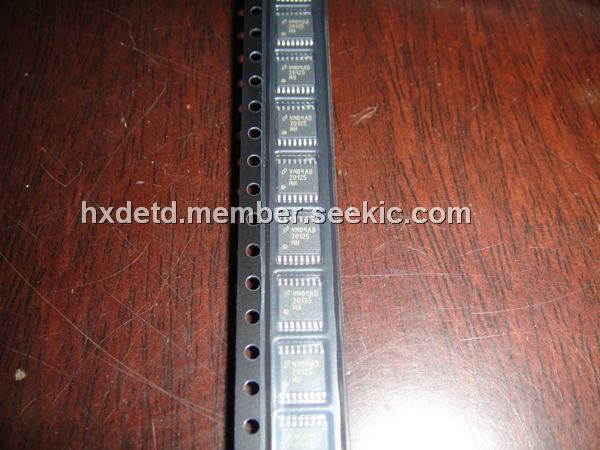

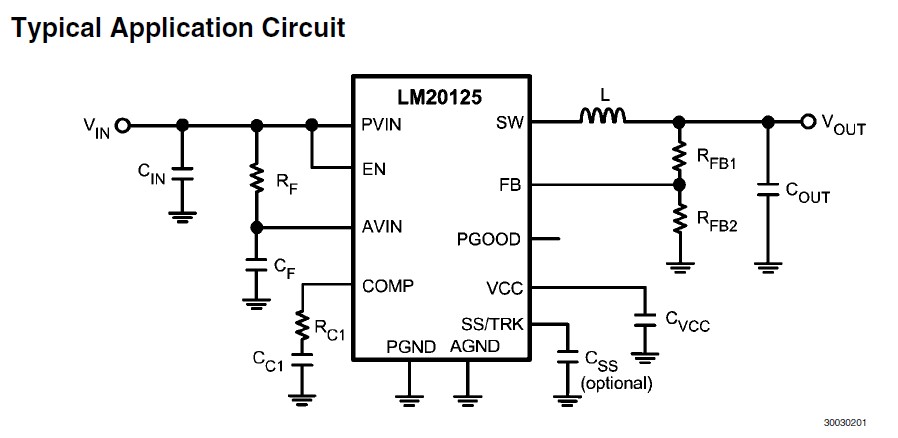

LM20125MH

500 kHz, synchronous buck regulator, 2.6W, 6V, ±2kV, Adjustable Soft-Start

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~2.63 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~2.63

PartNumber:: LM20125MH

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece
