Product Summary

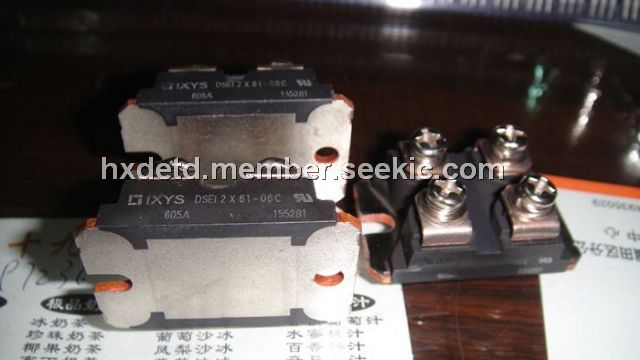

The DSEI2X61-06C is a fast recovery epitaxial diode.
Parametrics
DSEI2X61-06C absolute maximum ratings: (1)TVJ: -40 to +150 ℃; (2)TVJM: 150 ℃; (3)Tstg: -40 to +150 ℃; (4)Ptot TC = 25℃: 180 W; (5)VISOL 50/60 Hz, IISOL ≤ 1 mA, RMS: 2500 V; (6)Md Mounting torque: 1.5/13 Nm/lb.in.; (7)Terminal connection torque (M4): 1.5/13 Nm/lb.in.; (8)Weight: 30 g.
Features
DSEI2X61-06C features: (1)International standard package miniBLOC (ISOTOP compatible); (2)Isolation voltage 2500 V; (3)2 independent FRED in 1 package; (4)Planar passivated chips; (5)Very short recovery time; (6)Extremely low switching losses; (7)Low IRM-values; (8)Soft recovery behaviour.

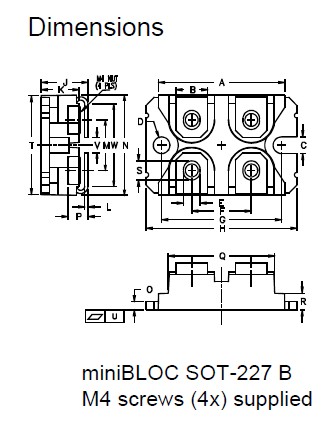

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DSEI2X61-06C |
Ixys |
Rectifiers DIODE Id2x60 BVdass600 |
Data Sheet |
Negotiable |
|
||||||
