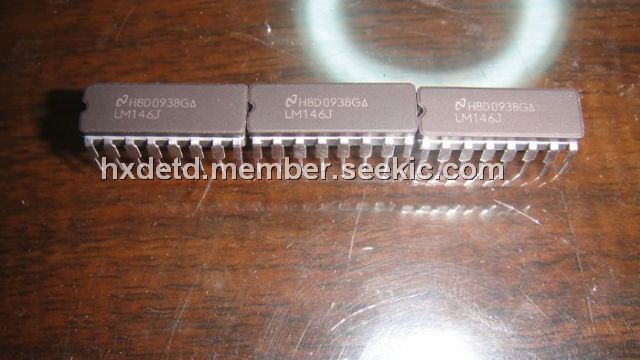

LM146J

DIP, operational amplifier, high gain, low power, ±22V, 350 μA, Large DC voltage gain

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.38~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.38~1.50

PartNumber:: LM146J

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-13

From Other Seller

Part Number:LM146J
US $1.38 - 1.50
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
TOP259EN

US $1.10 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM146J is a programmable quad operational amplifier. The LM146J quad op amp consists of four independent, high gain, internally compensated, low power, programmable amplifiers. Two external resistors (RSET) allow the user to program the gain bandwidth product, slew rate, supply current, input bias current, input offset current and input noise. For example, the user of the LM146J can trade-off supply current for bandwidth or optimize noise figure for a given source resistance. In a similar way, other amplifier characteristics of the LM146J can be tailored to the application.

Parametrics

LM146J absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Differential Input Voltage: ±30V; (3)CM Input Voltage: ±15V; (4)Power Dissipation: 900 mW; (5)Output Short-Circuit Duration: Continuous Continuous; (6)Operating Temperature Range: -55℃ to +125℃; (7)Maximum Junction Temperature: 150℃ 100℃; (8)Storage Temperature Range: -65℃ to +150℃; (9)Lead Temperature (Soldering, 10 seconds): 260℃.

Features

LM146J features: (1)Programmable electrical characteristics; (2)Battery-powered operation; (3)Low supply current: 350 μA/amplifier; (4)Guaranteed gaibandwidth product: 0.8 MHz min; (5)Large DC voltage gain: 120 dB; (6)Wide power supply range: ±1.5V to ±22V; (7)Class AB output stage–no crossover distortion; (8)Ideal piout for Biquad active filters; (9)Input bias currents are temperature compensated.
