Product Summary

The ADC08060CIMT is a low-power, 8-bit, monolithic analog-to-digital converter with an on-chip track-and-hold circuit. Optimized for low cost, low power, small size and ease of use, the ADC08060CIMT operates at conversion rates of 20 MSPS to 70 MSPS with outstanding dynamic performance over its full operating range while consuming just 1.3 mW per MHz of clock frequency. The applications of the ADC08060CIMT are Digital imaging systems, Communication systems, Portable instrumentation, Viterbi decoders, Set-top boxes.

Parametrics

ADC08060CIMT absolute maximum ratings: (1)Supply Voltage (VA):3.8V; (2)Driver Supply Voltage (DR VD):VA + 0.3V; (3)Voltage on Any Input or Output Pin:-0.3V to VA; (4)Reference Voltage (VRT,VRB):VA to AGND; (5)CLK, OE Voltage Range:-0.3V to (VA + 0.3V); (6)Digital Output Voltage (VOH,VOL):DR GND to DR VD; (7)Input Current at Any Pin:±25 mA; (8)Package Input Current:±50 mA; (9)ESD Susceptibility: Human Body Model:2500V, Machine Model:250V; (10)Soldering Temperature, Infrared, 10 seconds:235℃; (11)Storage Temperature:-65℃ to +150℃.

Features

ADC08060CIMT features: (1)Single-ended input; (2)Internal sample-and-hold function; (3)Low voltage (single +3V) operation; (4)Small package; (5)Power-down feature.

Diagrams

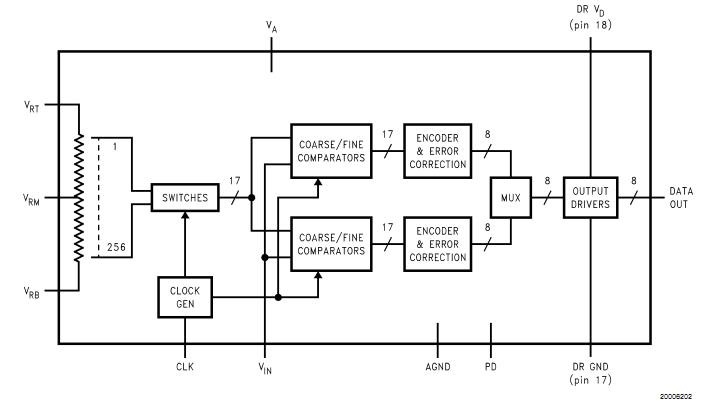

ADC08060CIMT block diagram
