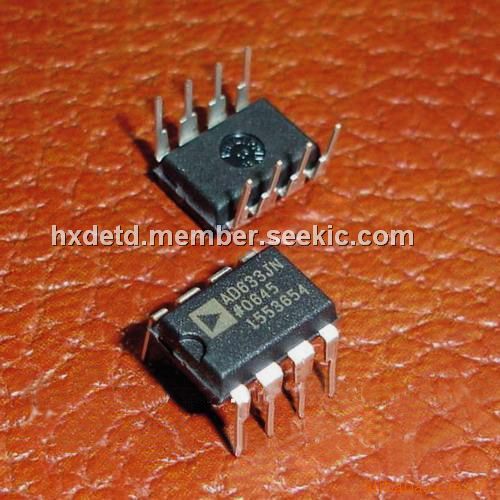

AD633JNZ

four-quadrant, analog multiplier, 8-DIP, ±18 V, Laser-Trimmed Accuracy, 500 mW

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.15~2.25 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.15~2.25

PartNumber:: AD633JNZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-14

From Other Seller

Part Number:AD633JNZ
US $2.15 - 2.25
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD633JNZ is a functionally complete, four-quadrant, analog multiplier. It includes high impedance, differential X and Y inputs and a high impedance summing input (Z). The low impedance output voltage is a nominal 10 V full scale provided by a buried Zener. The AD633JNZ is the first product to offer these features in modestly priced 8-lead plastic DIP and SOIC packages. The AD633JNZ is laser calibrated to a guaranteed total accuracy of 2% of full scale. Nonlinearity for the Y-input is typically less than 0.1% and noise referred to the output is typically less than 100 mV rms in a 10 Hz to 10 kHz bandwidth. A 1 MHz bandwidth, 20 V/ms slew rate, and the ability to drive capacitive loads make the AD633JNZ useful in a wide variety of applications where simplicity and cost are key concerns. The AD633JNZ versatility is not compromised by its simplicity. The Z-input provides access to the output buffer amplifier, enabling the user to sum the outputs of two or more multipliers, increase the multiplier gain, convert the output voltage to a current, and configure a variety of applications.

Parametrics

AD633JNZ absolute maximum ratings: (1)Supply Voltage:±18 V; (2)Internal Power Dissipation:500 mW; (3)Input Voltages: ±18 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range:–65℃ to +150℃; (6)Operating Temperature Range:0℃ to +70℃; (7)Lead Temperature Range (Soldering 60 sec): +300℃; (8)ESD Rating:1000 V.

Features

AD633JNZ features: (1)Four-Quadrant Multiplication; (2)Low Cost 8-Lead Package; (3)Complete—No External Components Required; (4)Laser-Trimmed Accuracy and Stability; (5)Total Error Within 2% of FS; (6)Differential High Impedance X and Y Inputs; (7)High Impedance Unity-Gain Summing Input; (8)Laser-Trimmed 10 V Scaling Reference.
