Product Summary

The AD536ASD is a complete monolithic integrated circuit which performs true rms-to-dc conversion. It offers performance which is comparable or superior to that of hybrid or modular units costing much more. The AD536ASD directly computes the true rms value of any complex input waveform containing ac and dc components. The AD536ASD has a crest factor compensation scheme which allows measurements with 1% error at crest factors up to 7. The wide bandwidth of the device extends the measurement capability to 300 kHz with 3 dB error for signal levels above 100 mV.

Parametrics

AD536ASD absolute maximum ratings: (1)Supply Voltage: Dual Supply:±18 V, Single Supply:+36 V; (2)Internal Power Dissipation:500 mW; (3)Maximum Input Voltage:±25 V Peak; (4)Buffer Maximum Input Voltage:±VS; (5)Maximum Input Voltage:±25 V Peak; (6)Storage Temperature Range:–55℃ to +150℃; (7)Operating Temperature Range:–55℃ to +125℃; (8)Lead Temperature Range(Soldering 60 sec):+300℃; (9)ESD Rating:1000 V.

Features

AD536ASD features: (1)True RMS-to-DC Conversion; (2)Wide Response Capability: Computes RMS of AC and DC Signals, 450 kHz Bandwidth: V rms ＞ 100 mV, 2 MHz Bandwidth: V rms ＞ 1V, Signal Crest Factor of 7 for 1% Error; (3)dB Output with 60 dB Range; (4)Low Power: 1.2 mA Quiescent Current; (5)Single or Dual Supply Operation; (6)Monolithic Integrated Circuit; (7)–55℃ to +125℃ Operation.

Diagrams

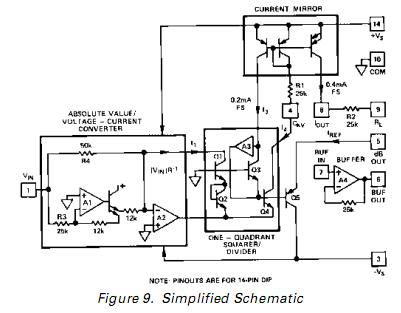

AD536ASD circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD536ASD
AD536ASD

IC TRUE RMS/DC CONV 14-CDIP
Data Sheet
0-1: $53.00
1-10: $49.69
10-100: $44.72
100-250: $44.16
