Product Summary

The 54104-5031 is a 0.50mm (.020") Pitch FFC/FPC Connector.

Parametrics

54104-5031 absolute maximum ratings: (1)Circuits (Loaded): 50; (2)Material - Metal: Phosphor Bronze; (3)Material - Resin: High Temperature Thermoplastic; (4)Number of Rows: 1; (5)Orientation: Right Angle; (6)Packaging Type: Embossed Tape on Reel; (7)Pitch - Mating Interface: 0.50mm (.020"); (8)Surface Mount Compatible (SMC): N/A; (9)Temperature Range - Operating: -20℃ to +85℃; (10)Termination Interface: Style: Surface Mount; (11)Wire/Cable Type: FFC/FPC; (12)Current - Maximum per Contact: 0.5A; (13)Voltage - Maximum: 50V.

Features

54104-5031 features: (1)Product Family FFC/FPC Connectors; (2)Series 54104; (3)Overview ffc_fpc_smt; (4)Product Name N/A.

Diagrams

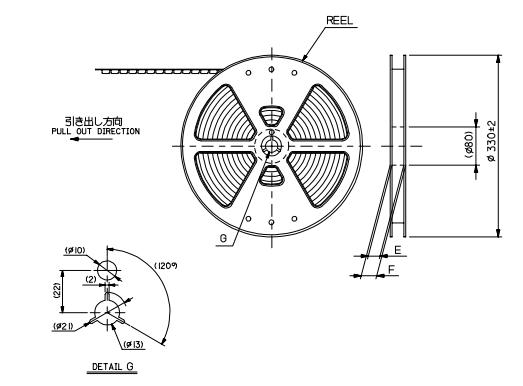

54104-5031 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
54104-5031
54104-5031
Molex
FFC / FPC Connectors .5MM REC 50P RA SMT TOP AU
Data Sheet
0-1: $2.24
1-10: $2.07
10-100: $1.54
100-500: $1.29
