Product Summary
The 52559-1572 is a 0.50mm Pitch FFC/FPC Connector.
Parametrics
52559-1572 general specifications: (1)Current - Maximum per Contact 0.5A ; (2)Voltage - Maximum 50V.
Features
52559-1572 features: (1)Circuits (Loaded) 15 ; (2)Contact Position N/A ; (3)Durability (mating cycles max) 20 ; (4)Entry Angle Vertical ; (5)Flammability 94V-0 ; (6)Mated Height 3.90mm; (7)Material - Metal Phosphor Bronze ; (8)Material - Plating Mating Tin-Bismuth ; (9)Material - Resin Nylon ; (10)Number of Rows 1 ; (11)Orientation Vertical ; (12)PCB Locator No ; (13)PCB Retention Yes ; (14)Packaging Type Embossed Tape on Reel ; (15)Pitch - Mating Interface 0.50mm; (16)Polarized to PCB No ; (17)Stackable No ; (18)Temperature Range - Operating:-40℃ to +85℃; (19)Termination Interface: Style Surface Mount ; (20)Wire/Cable Type FFC/FPC.

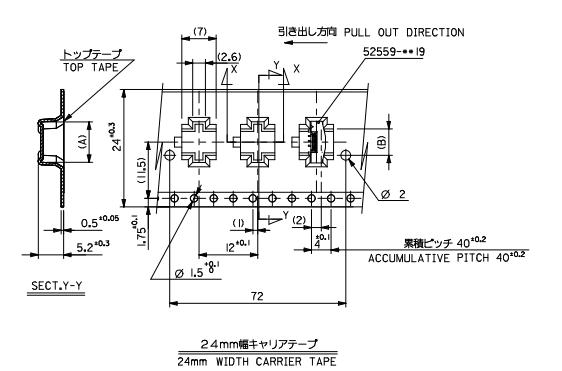

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 52559-1572 |
Molex |
FFC / FPC Connectors .5MM REC 15P VT SMT |
Data Sheet |
Negotiable |
|
||||||||||||
