Product Summary

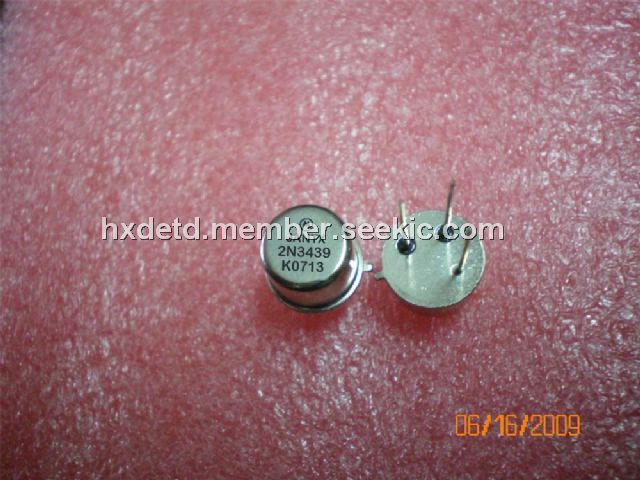

The 2N3439 is a silicon epitaxial planar NPN transistor in jedec TO-39 metal case designed for use in consumer and industrial line-operated applications. The 2N3439 is particularly suited as drivers in high-voltage low current inverters, switching and series regulators.
Parametrics
2N3439 absolute maximum ratings: (1)Collector-Base Voltage (IE = 0):450V; (2)Collector-Emitter Voltage (IB = 0):350V; (3)Emitter-Base Voltage (IC = 0):7V; (4)Collector Current:1A; (5)Base Current:0.5A; (6)Total Dissipation at Tc ≤ 25℃:10W; (7)Total Dissipation at Tamb ≤ 50℃:1W; (8)Storage Temperature:-65℃ to 200℃; (9)Max. Operating Junction Temperature:200℃.
Features
2N3439 features: (1)dual silicon planar epitaxial NPN transistor; (2)high voltage.

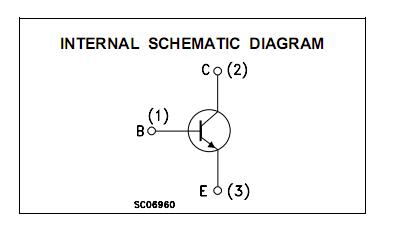

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N3439 |
STMicroelectronics |
Transistors Bipolar (BJT) NPN Power Switching |
Data Sheet |
|
|
||||||||||||
 |
2N3439CSM4R |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
2N3439CSM4 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
