MD2202-D96

Disk OnChip, DIP, module, -0.5 to 4.6 V, -10 to 10 mA, Single-chip, plug-n-play flash disk

Rated 5 Rating 5 | reviews | Write a review

Price:: US $19.76~20.66 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $19.76~20.66

PartNumber:: MD2202-D96

Brand:: M Systems International, Inc. - MSYSTEMS | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Tienne's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-10-13

From Other Seller

Part Number:MD2202-D96
US $19.76 - 20.66
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

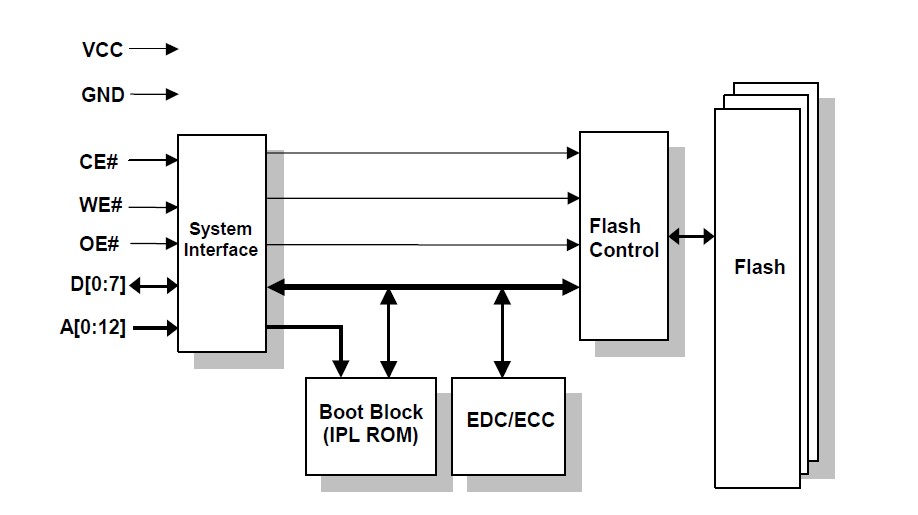

The MD2202-D96 product line is the second-generation of M-Systems DiskOnChip series of products. TheMD2202-D96 provides a small, single-chip, solid-state flash disk in a standard 32-pin DIP package. Combining a disk controller with flash memory on a single chip, the MD2202-D96 is the solution where minimal weight, space, and power consumption are essential. In consequence, the MD2202-D96 finds use today in a wide range of products, such as information appliances, set-top boxes, thin clients, thin servers, network computers, and embedded, portable computers. By placing MD2202-D96 in a standard socket, physical space requirements are reduced. Unlike standard IDE drives, no cables or extra space are required. The MD2202-D96 has no moving parts, resulting in significantly decreased power consumption and increased reliability. It is easy to use and reduces integration overhead. The MD2202-D96 is therefore a very attractive alternative to conventional hard and floppy disk drives.

Parametrics

MD2202-D96 absolute maximum ratings: (1)DC supply voltage VCCS: -0.5 to 4.6 V ; (2)Input pin voltage VIN: -0.5 to VCC + 0.3 V; (3)Input pin current IIN Not Specified: -10 to 10 mA +25 ℃.

Features

MD2202-D96 features: (1)Single-chip plug-n-play flash disk; (2)Low power, single 3.3V or 5V power supply; (3)16MB to 576MB capacity (1GB in 2002); (4)Pinout and structure compatible with DiskOnChip Millennium DIP 8MB; (5)Simple, easy-to-integrate interface; (6)32-pin DIP, JEDEC standard, EEPROM-compatible pinout; (7)8KB sized memory window; (8)Boot OS capability; (9)Embedded TrueFFS. software provides.
